COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine

Place of Origin Wuhan,China
Brand Name COTAJET
Certification CE,Rohs,SGS
Delivery Time 5-7 work day
Payment Terms TT,L/C,Western union

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Fiber Laser Engraving Machine Product ID CL700A
Product Tags Fiber Laser Marking Machine Laser Life >100,000 Hours
Power Supply 90V~240V 50/60HZ Power Consumption 300-500W
Laser Power 20W/30W/50W/100W Marking Range 110X110mm(Standard) Optional:150X150mm,300X300mm
Marking Content Number、English、Alphabet 、Picture、QRCODE、Barcode
Highlight

Portable Fiber Laser Marker Machine

,

Portable Laser Marking Machine 20W

,

100W Expiry Date Coding Machine

Leave a Message
Product Description

Fiber Laser Marking Machine For expiry date  Coding Aluminum Stainless Steel



The Cotajet is a unique fiber laser marking system designed for quick integration in all types of production lines. Offering unmatched speed and reliability, it is ideal for metal marking applications. It can create permanent marks including data matrix codes, QR codes, serial numbers, alphanumeric characters and logos.



project

Parametertable

20W

30W





characteristic

Machine   material

All aluminum   sandblasting oxidation

Laser

The service   life is more than 100000 hours

Laser   wavelength

1064nm

output power

≥23W

≥34W

Marking   speed

≤12000mm/s

controller

10.2 inch   touch controller

Cooling system

Air cooling







parameter

Focus lens

165mm

Minimum   linewidth

0.012mm

Repetitionaccuracy

0.003mm

Marking   range

110mm*110mm(optinal)

Positioning   mode

Blue light   indication

Number of   rows

Any line   within the marking range

Production   line speed

0~130m/min   (depending on the material)









Software

Multilingual

English,   Spanish, German, Chinese, Russian, Arabic, etc

jurisdiction

Multi user   management authority

operating   system

Linuxsystem

Inkjet mode

Static, analog,   encoder

Reserved   signal

Start, print   status, finish, fault

data   protection

With power   failure data protection energy

monitor

Provide   overspeed alarm function

De crossing

Automatic   removal of intersections

Coding   software

Single and double   machine code sending



Support type

typeface

Chinese and   English, numbers, traditional, etc

file format

BMP/DXF/HPGL/JPEG/PLT

bar code

CODE39,CODE128,CODE126,QR



Servicing   parameters

Power Supply

220V/50HZ

Power   consumption

400W

Net weight   of machine

28kg

Overall   dimension

530mmX140mmX165mm

environment

requirement

External   temperature0℃45℃;humidity≤95

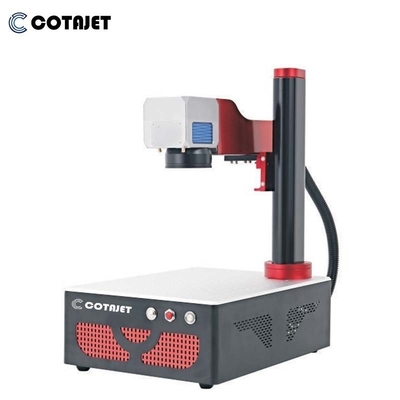

COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine 0

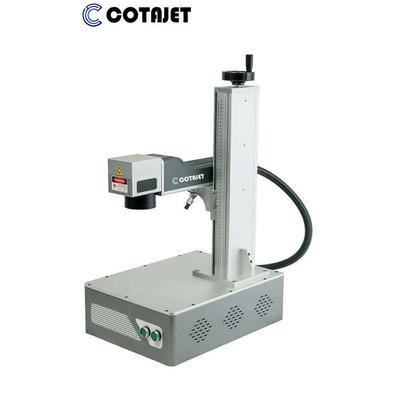

COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine 1

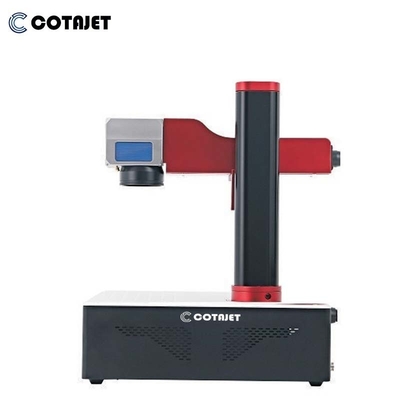

COTAJET Portable Laser Marking Machine 20W 30W 50W 100W Expiry Date Coding Machine 2
