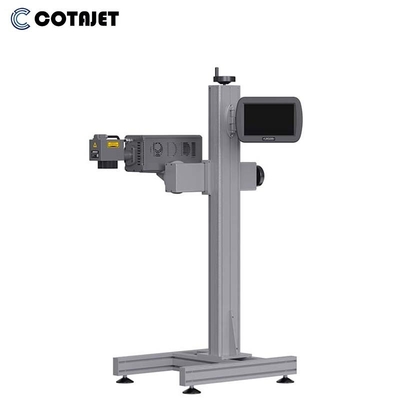

20W 30W 50W 100W Fiber Laser Marking Machine For Printing On Metal / Aluminum Lids

Place of Origin Wuhan,China
Brand Name COTAJET
Certification CE,Rohs,SGS
Model Number CL400C
Delivery Time 5-7 work day
Payment Terms TT,L/C,Western union

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Laser Marking On Pipe Product ID CL400C
Product Tags Fiber Laser Marking Machine Laser Power 20W/30W/50W/100W
Marking Speed ≤12000mm/s Laser Wavelength 1064nm
Controller 10.2 Inch Touch Controller Marking Range 110X110mm(Standard) Optional:150X150mm,300X300mm
Production Line Speed 0~130m/min (depending On The Material)
Highlight

50W Fiber Laser Marking Machine

,

100W Fiber Laser Marking Machine

,

20W Fiber Laser Marking Machine

Leave a Message
Product Description

Fiber Laser Marking for printing on metal and aluminum lids, cans, bottles and other containers





Fly fiber Laser Marking machine is use for mark on Coding and marking extrusion products, expiry date on plastic , expiry date on rubber, expiry date on metal can,expriy date on foil pouch bag,Coding and marking on extruded materials



When deciding which laser marking machines are best suited for your needs, there are several factors to consider. First and foremost is your budget, as these machines can vary significantly in price. Additionally, you’ll want to take into account any special features you may need, such as speed control or software compatibility. Finally, you should think about how you plan on laser marking metal parts. Additional factors, like focal distance and the geometry of your part, will play an important role in your laser marking set up. However, the 3-Axis Hybrid Laser Marker can eliminate these types of factors as a concern.



Feature

Laser tube life of over 100,000 hours – less downtime

Fine spot size for high quality codes

Two beam orientation options allows coding in any direction

Choice of 4 lenses for codes tailored to your requirements

Compact marking head for easy integration into moving and static lines

Internal air cooling system for increased efficiency and less maintenance

Quick message creation reduces time spent on setup and changeovers

Extremely efficient use of the laser with no compromise on code quality or speed



project

Parametertable

20W

30W





characteristic

Machine   material

All aluminum   sandblasting oxidation

Laser

The service   life is more than 100000 hours

Laser   wavelength

1064nm

output power

≥23W

≥34W

Marking   speed

≤12000mm/s

controller

10.2 inch   touch controller

Cooling system

Air cooling







parameter

Focus lens

165mm

Minimum   linewidth

0.012mm

Repetitionaccuracy

0.003mm

Marking   range

110mm*110mm(optinal)

Positioning   mode

Blue light   indication

Number of   rows

Any line   within the marking range

Production   line speed

0~130m/min   (depending on the material)









Software

Multilingual

English,   Spanish, German, Chinese, Russian, Arabic, etc

jurisdiction

Multi user   management authority

operating   system

Linuxsystem

Inkjet mode

Static, analog,   encoder

Reserved   signal

Start, print   status, finish, fault

data   protection

With power   failure data protection energy

monitor

Provide   overspeed alarm function

De crossing

Automatic   removal of intersections

Coding   software

Single and double   machine code sending



Support type

typeface

Chinese and   English, numbers, traditional, etc

file format

BMP/DXF/HPGL/JPEG/PLT

bar code

CODE39,CODE128,CODE126,QR



Servicing   parameters

Power Supply

220V/50HZ

Power   consumption

400W

Net weight   of machine

38kg

Overall   dimension

530mmX140mmX165mm

environment

requirement

External   temperature0℃45℃;humidity≤95
