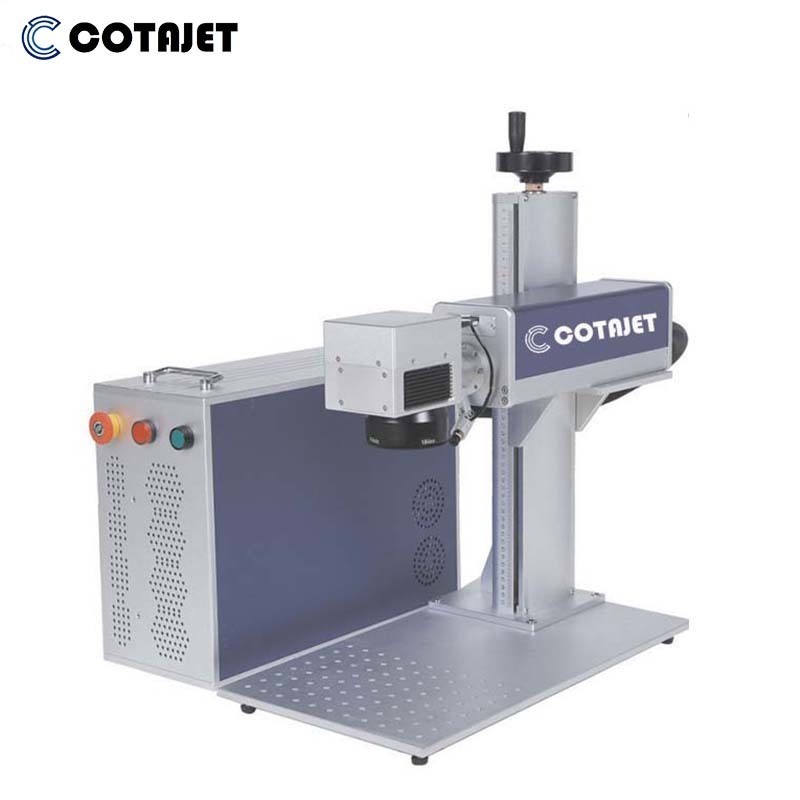

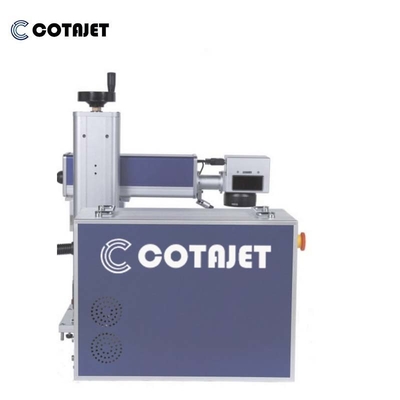

COTAJET Fiber Laser Marking Machine 50W 100W Stainless Steel Laser Engraving Machine
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Fiber Laser Marking Systems | Product ID | CL100A |
|---|---|---|---|
| Product Tags | Fiber Laser Marking Machine | Laser Power | 20W/30/W50W/100W |
| Marking Speed | ≤12000mm/s | Laser Wavelength | 1064nm |
| Controller | 10.2 Inch Touch Controller | Marking Range | 110X110mm(Standard) Optional:150X150mm,300X300mm |
| Production Line Speed | 0~130m/min (depending On The Material) | ||
| Highlight | Fiber Laser Marking Machine 50W,Fiber Laser Marking Machine 100W,Stainless Steel Laser Engraving Machine |
||
Product Description
Fiber Laser Marking Systems with laser engraving machine for Stainless Steel
Main Features of Fiber Laser Marking Machine:
-
Laser oscillation in the fiber optical wave, low dissipation, good stability
-
Processing speed is 2 to 3 times the traditional laser marking machine.
-
Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, low consumption (800 w) or less, use cost.
-
Integrated design, small size (there are a whole cabinet and portable optional).
-
Bar code, qr code, graphics, text rules and irregular marking serial number, etc.
-
Software running on WINDOWS platform, Chinese/English interface, can be compatible with AUTOCAD
|
project |
Parametertable |
20W |
30W |
|
characteristic |
Machine material |
All aluminum sandblasting oxidation |
|
|
Laser |
The service life is more than 100000 hours |
||
|
Laser wavelength |
1064nm |
||
|
output power |
≥18W |
≥26W |
|
|
Marking speed |
≤12000mm/s |
||
|
controller |
10.2 inch touch controller |
||
|
Cooling system |
Air cooling |
||
|
parameter |
Focus lens |
165mm |
|
|
Minimum linewidth |
0.012mm |
||
|
Repetitionaccuracy |
0.003mm |
||
|
Marking range |
110mm*110mm(optinal) |
||
|
Positioning mode |
Blue light indication |
||
|
Number of rows |
Any line within the marking range |
||
|
Production line speed |
0~130m/min (depending on the material) |
||
|
Software |
Multilingual |
English, Spanish, German, Chinese, Russian, Arabic, etc |
|
|
jurisdiction |
Multi user management authority |
||
|
operating system |
Linuxsystem |
||
|
Inkjet mode |
Static, analog, encoder |
||
|
Reserved signal |
Start, print status, finish, fault |
||
|
data protection |
With power failure data protection energy |
||
|
monitor |
Provide overspeed alarm function |
||
|
De crossing |
Automatic removal of intersections |
||
|
Coding software |
Single and double machine code sending |
||
|
Support type |
typeface |
Chinese and English, numbers, traditional, etc |
|
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
||
|
bar code |
CODE39,CODE128,CODE126,QR |
||
|
Servicing parameters |
Power Supply |
220V/50HZ |
|
|
Power consumption |
400W |
||
|
Net weight of machine |
15kg |
||
|
Overall dimension |
530mmX140mmX165mm |
||
|
environment |
requirement |
External temperature0℃－45℃;humidity≤95 |
|
