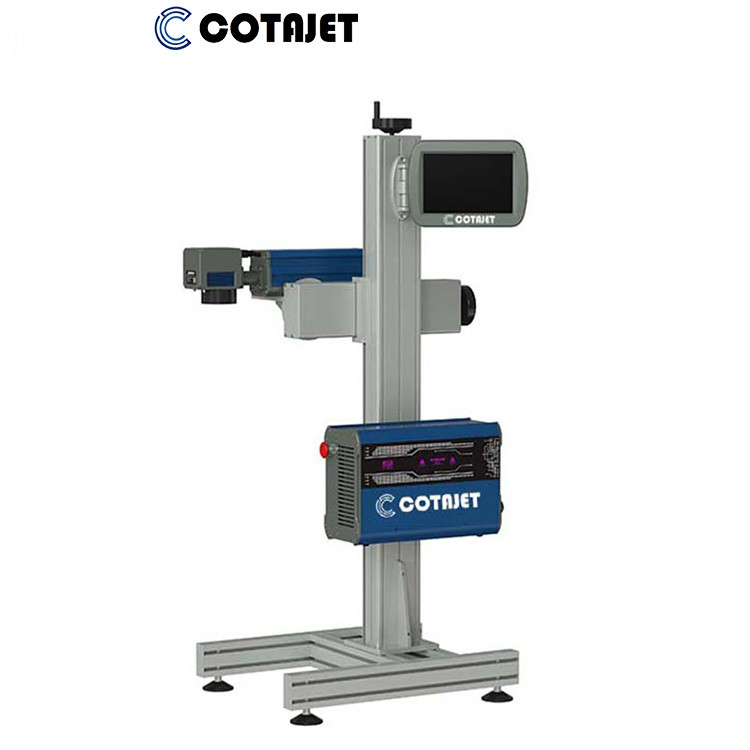

Metal Fiber Laser Marking Machine 20W 30W 50W 100W For Pipe
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Tags | Fiber Laser Marking Machine | Product ID | CL400A |
|---|---|---|---|
| Laser Power | 20W/30W/50W/100W | Marking Speed | ≤12000mm/s |
| Laser Wavelength | 1064nm | Controller | 10.2 Inch Touch Controller |
| Marking Range | 110X110mm(Standard) Optional:150X150mm,300X300mm | Production Line Speed | 0~130m/min (depending On The Material) |
| Material | Laser Marking On Metal | ||
| Highlight | Metal Fiber Laser Marking Machine,Fiber Laser Marking Machine 20W,Fiber Laser Marking Machine 30W |
||
Product Description
Fiber Laser Marking on metal with high speed production line for Pipe
Fiber fly laser marking on Pipe,mark on metal can.
Fiber laser marking is suitable for bare metal and rigid plastics and is used in the automotive and electronics industries and FMCG. It provides high-speed printing in large coding areas, tough environments, multi-head scribe and high-contrast codes.
Laser marking machines are a popular choice for engraving and marking products with logos, text, and even barcodes. These machines are designed to provide precision results on various materials, including metals. Selecting a suitable laser marking machine for metals can make an impactful difference in the success of your project.
|
project |
Parametertable |
20W |
30W |
|
characteristic |
Machine material |
All aluminum sandblasting oxidation |
|
|
Laser |
The service life is more than 100000 hours |
||
|
Laser wavelength |
1064nm |
||
|
output power |
≥22W |
≥32W |
|
|
Marking speed |
≤12000mm/s |
||
|
controller |
10.2 inch touch controller |
||
|
Cooling system |
Air cooling |
||
|
parameter |
Focus lens |
165mm |
|
|
Minimum linewidth |
0.012mm |
||
|
Repetitionaccuracy |
0.003mm |
||
|
Marking range |
110mm*110mm(optinal) |
||
|
Positioning mode |
Blue light indication |
||
|
Number of rows |
Any line within the marking range |
||
|
Production line speed |
0~130m/min (depending on the material) |
||
|
Software |
Multilingual |
English, Spanish, German, Chinese, Russian, Arabic, etc |
|
|
jurisdiction |
Multi user management authority |
||
|
operating system |
Linuxsystem |
||
|
Inkjet mode |
Static, analog, encoder |
||
|
Reserved signal |
Start, print status, finish, fault |
||
|
data protection |
With power failure data protection energy |
||
|
monitor |
Provide overspeed alarm function |
||
|
De crossing |
Automatic removal of intersections |
||
|
Coding software |
Single and double machine code sending |
||
|
Support type |
typeface |
Chinese and English, numbers, traditional, etc |
|
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
||
|
bar code |
CODE39,CODE128,CODE126,QR |
||
|
Servicing parameters |
Power Supply |
220V/50HZ |
|
|
Power consumption |
400W |
||
|
Net weight of machine |
28kg |
||
|
Overall dimension |
530mmX140mmX165mm |
||
|
environment |
requirement |
External temperature0℃－45℃;humidity≤95 |
|
