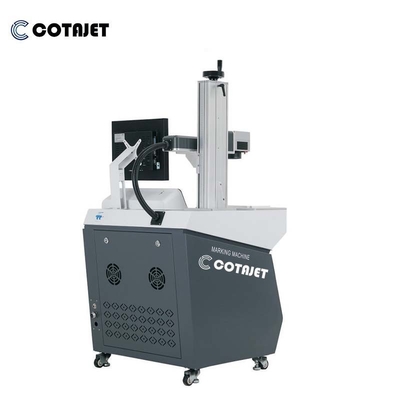

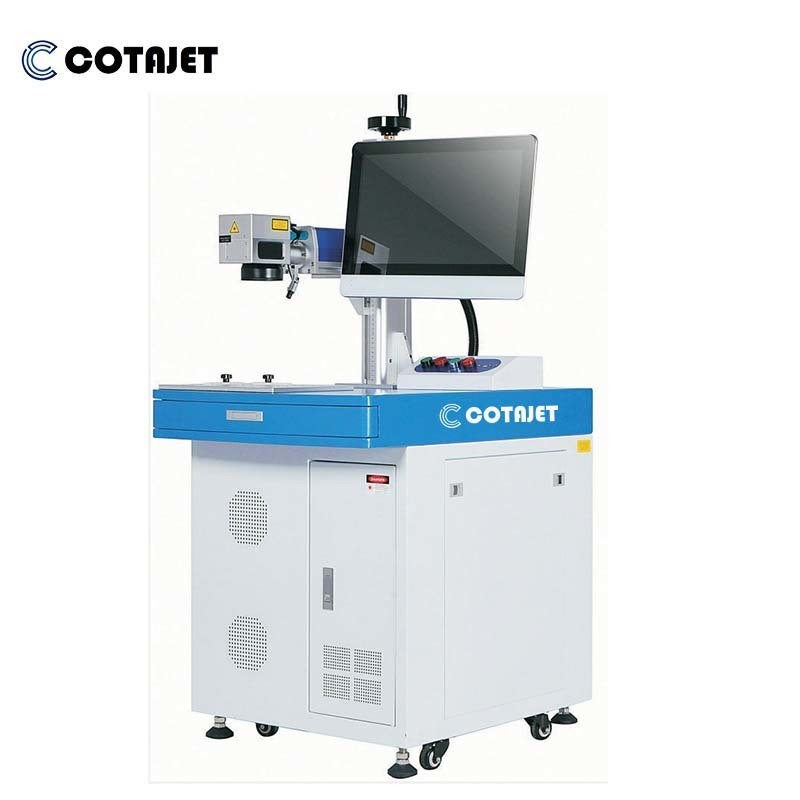

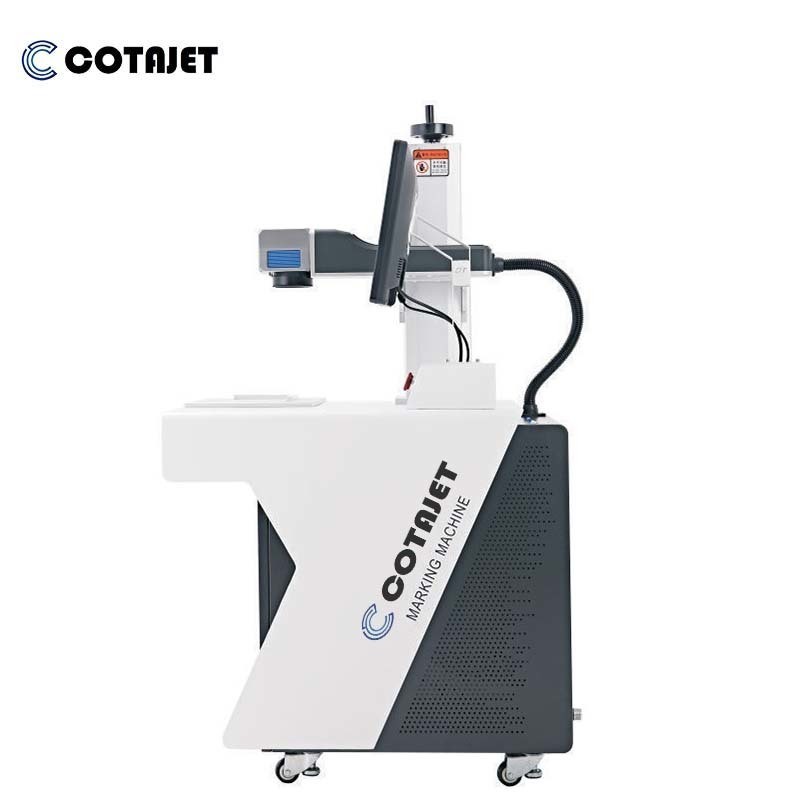

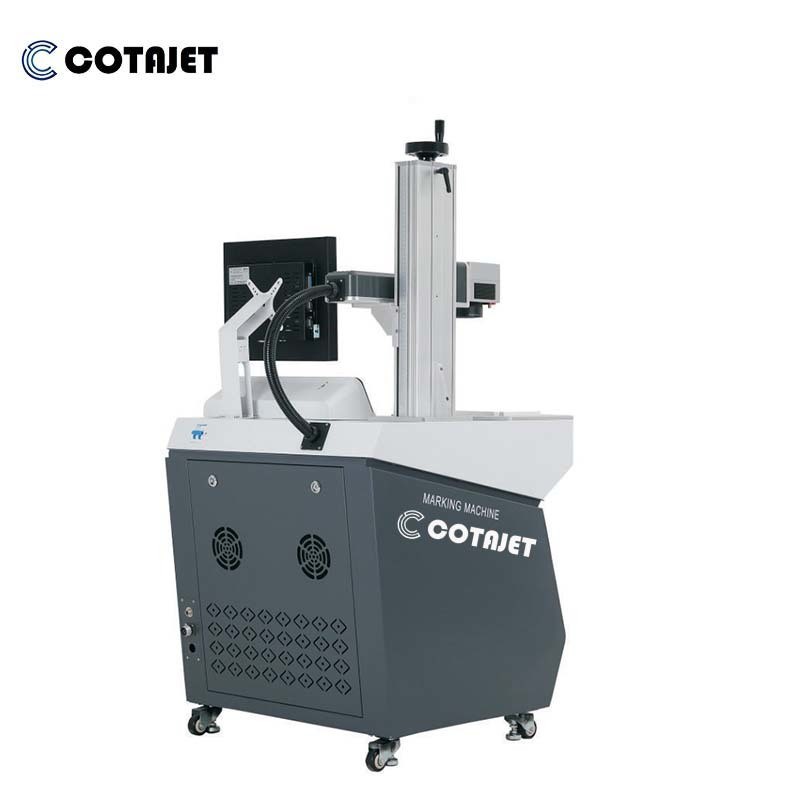

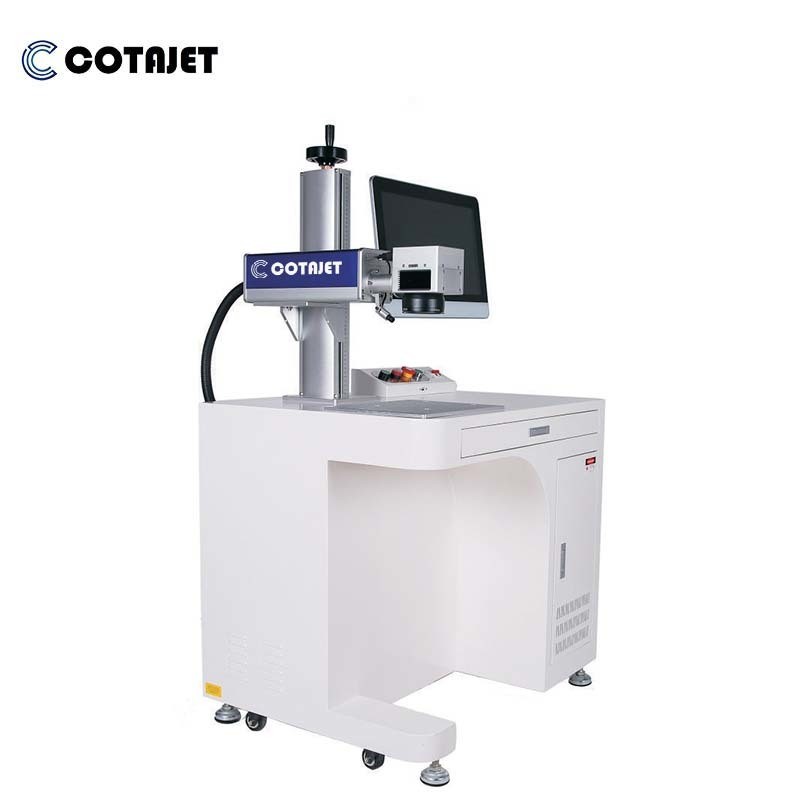

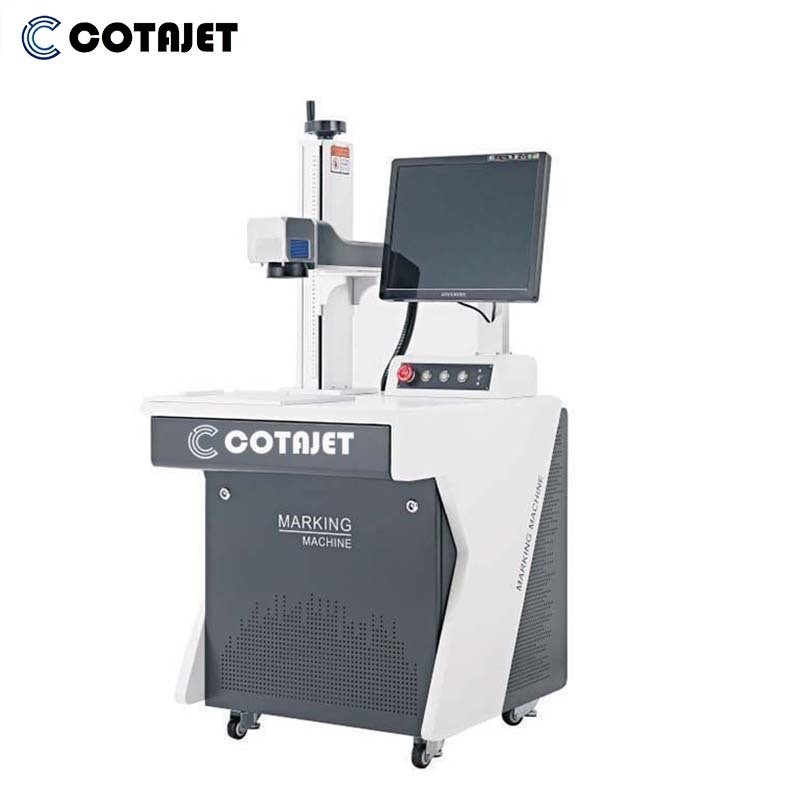

0-130m/min Static Fiber Laser Marking Machine 1064nm For Plastic / Rubber Parts
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product ID | CL100B | Product Tags | Fiber Laser Marking Machine |
|---|---|---|---|
| Laser Power | 20W/30W/50W/100W | Marking Speed | ≤12000mm/s |
| Laser Wavelength | 1064nm | Controller | 10.2 Inch Touch Controller |
| Marking Range | 110X110mm(Standard) Optional:150X150mm,300X300mm | Production Line Speed | 0~130m/min (depending On The Material) |
| Material | Coding Solutions For Plastic And Rubber Parts | ||
| Highlight | 130m/min Fiber Laser Marking Machine,Fiber Laser Marking Machine For Plastic,1064nm Laser Fiber Marking Machine |
||
Product Description
laser marking on plastic and rubber parts
Plastic and rubber parts vary in composition, color, and elasticity. They include an array of substrates like polypropylene, polyurethanes, acrylonitrile butadiene styrene, and sometimes feature slick plasticizers and other attributes.
Offering seamless software and hardware solutions for easy integration into your production lines or cells, the Cotajet global team of technology specialists can help to get your coding solution up and running quickly. Cotajet printers and lasers offer rules-based, bar code reading, and network communication options for easy data entry, helping you get the right code on the right product, time after time.
Parameter:
|
project |
Parametertable |
20W |
30W |
|
characteristic |
Machine material |
All aluminum sandblasting oxidation |
|
|
Laser |
The service life is more than 100000 hours |
||
|
Laser wavelength |
1064nm |
||
|
output power |
≥23W |
≥34W |
|
|
Marking speed |
≤12000mm/s |
||
|
controller |
10.2 inch touch controller |
||
|
Cooling system |
Air cooling |
||
|
parameter |
Focus lens |
165mm |
|
|
Minimum linewidth |
0.012mm |
||
|
Repetitionaccuracy |
0.003mm |
||
|
Marking range |
110mm*110mm(optinal) |
||
|
Positioning mode |
Blue light indication |
||
|
Number of rows |
Any line within the marking range |
||
|
Production line speed |
0~130m/min (depending on the material) |
||
|
Software |
Multilingual |
English, Spanish, German, Chinese, Russian, Arabic, etc |
|
|
jurisdiction |
Multi user management authority |
||
|
operating system |
Linuxsystem |
||
|
Inkjet mode |
Static, analog, encoder |
||
|
Reserved signal |
Start, print status, finish, fault |
||
|
data protection |
With power failure data protection energy |
||
|
monitor |
Provide overspeed alarm function |
||
|
De crossing |
Automatic removal of intersections |
||
|
Coding software |
Single and double machine code sending |
||
|
Support type |
typeface |
Chinese and English, numbers, traditional, etc |
|
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
||
|
bar code |
CODE39,CODE128,CODE126,QR |
||
|
Servicing parameters |
Power Supply |
220V/50HZ |
|
|
Power consumption |
400W |
||
|
Net weight of machine |
38kg |
||
|
Overall dimension |
530mmX140mmX165mm |
||
|
environment |
requirement |
External temperature0℃－45℃;humidity≤95 |
|
