Hand Held Laser Marking Machine | Mini portable Laser Marker

Place of Origin Wuhan,China
Brand Name COTAJET
Certification CE,Rohs,SGS
Model Number CL800E
Delivery Time 5-7 work day
Payment Terms TT,L/C,Western union

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Portable Laser Marking Product ID CL800E
Product Tags Fiber Laser Marking Machine Laser Power 20W/30W/
Laser Life >100,000 Hours Power Supply 90V~240V 50/60HZ
Power Consumption 300-500W Marking Range 75X75mm(Standard)
Optional 150X150mm,300X300mm
Leave a Message
Product Description

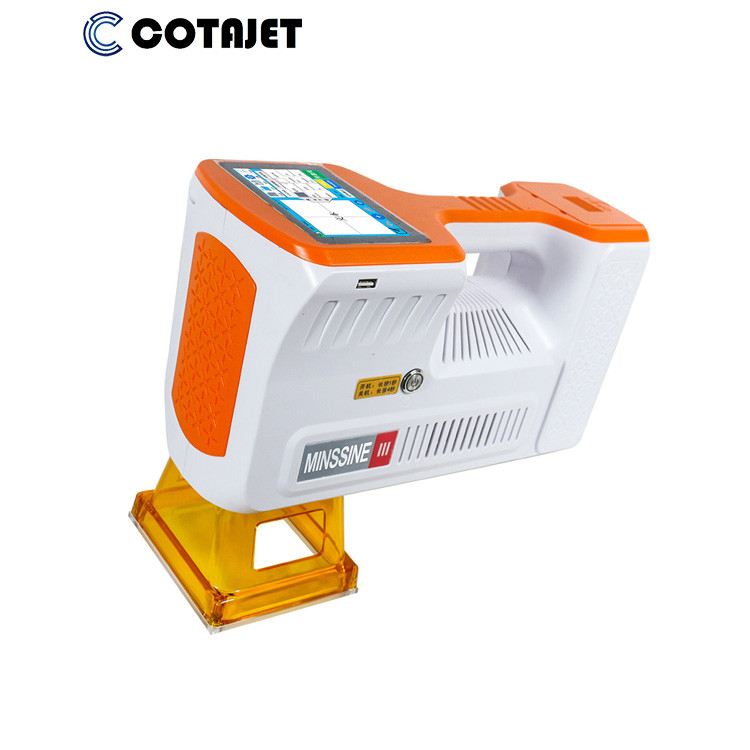

Hand Held Laser Marking Machine | Mini portable Laser Marker

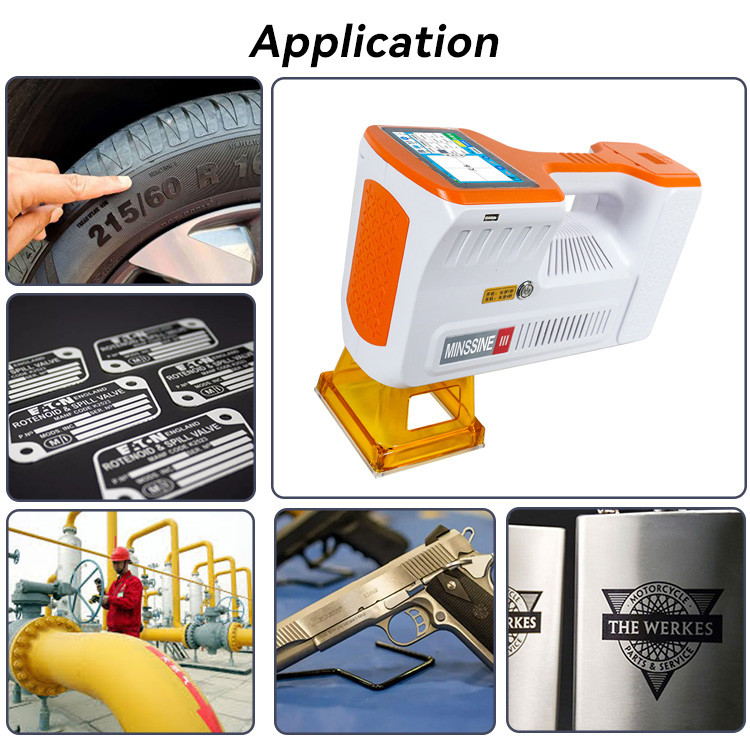

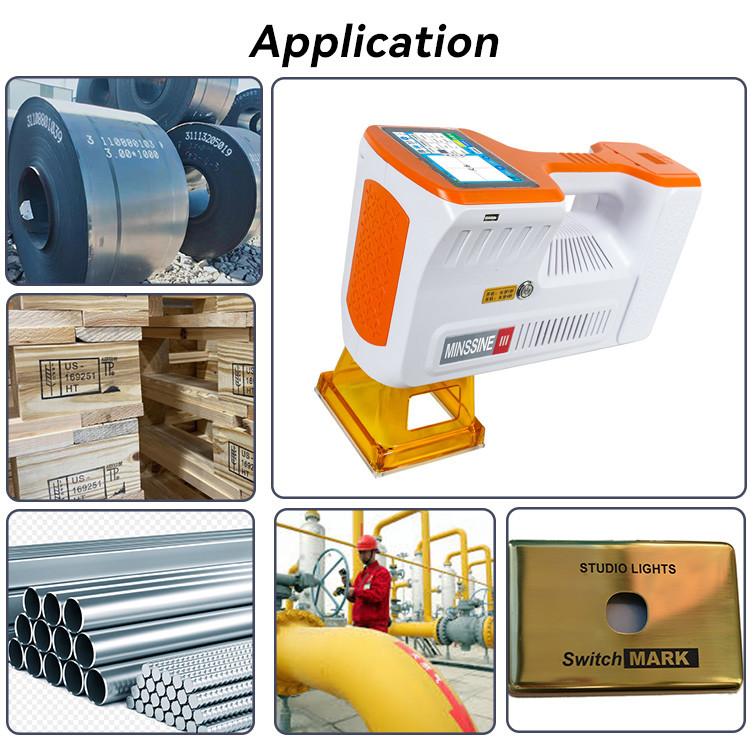

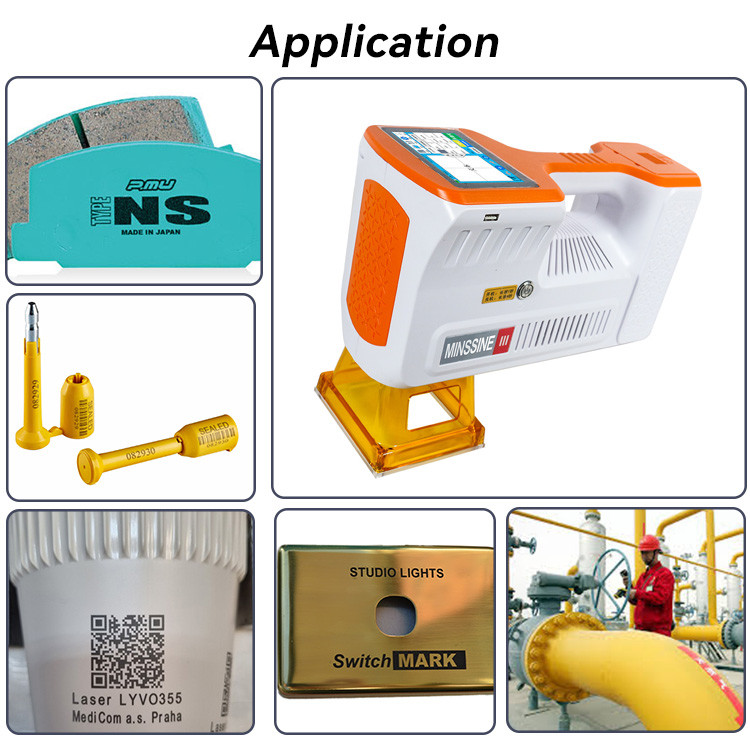

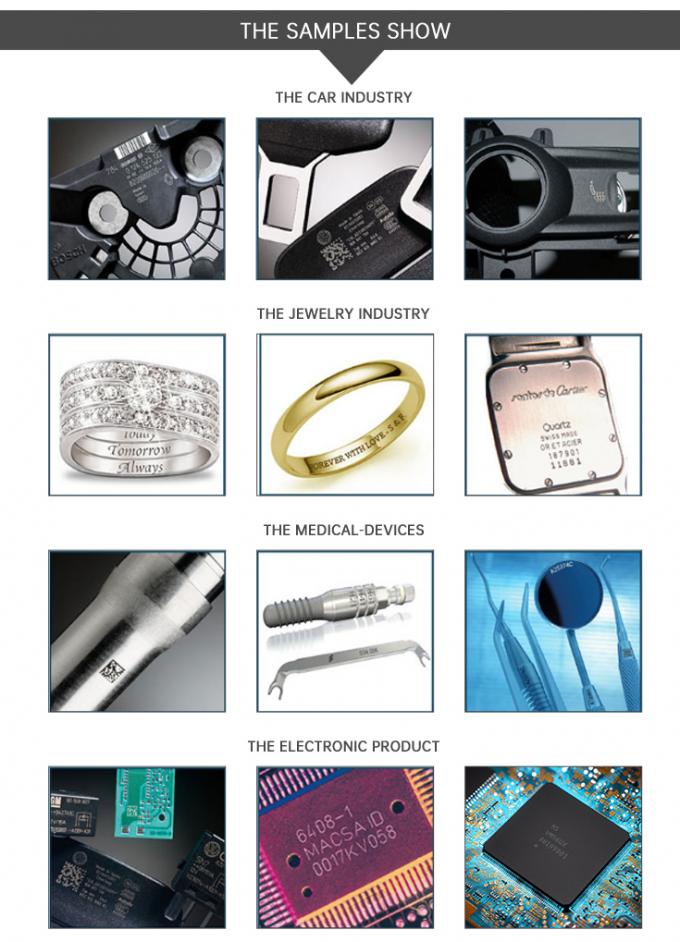

The portable handheld laser marking machine delivers a fast and efficient solution for marking large, heavy, or immobile objects that are challenging to mark using traditional methods. Perfect for engraving metals, plastics, rubber, ceramics, and glass, this portable device ensures permanent, high-contrast, and detailed markings across a range of materials. The flexibility of the handheld laser marking system is reflected in its ability to work in fixed offices and be used in various production line. It also has an advanced control system that can accurately mark serial numbers, logos, barcodes and complex patterns. With a marking speed of up to 7000mm/s, it significantly boosts production efficiency by reducing processing times. Handheld Laser Marking Machine Applications Electronic Components: Resistors, capacitors, chips, printed circuit boards, computer keyboards, charger adapter, etc. Instruments and Meters: Panels, nameplates, panel labels, precision equipment, etc. Hardware Tools: Cutting tools, tools, measuring instruments, etc. Mechanical Parts: Pistons, bearings, gears, etc. Daily Necessities: Cosmetics, door signs, medals, crafts, keychains, sanitary fixtures, glasses, LED lights, etc. Jewelry: Rings, necklaces, earrings, gold jewelry, silver jewelry, etc. Medical: Medical devices, surgical instruments, medical packaging, etc. Packaging: Tableware, food, beverages, tobacco and alcohol, plastic packaging bags, etc.


project

Parametertable

20W

30W



characteristic

Machine   material

All aluminum   sandblasting oxidation

Laser

The service   life is more than 100000 hours

Laser   wavelength

1064nm

output power

≥23W

≥34W

Marking   speed

≤12000mm/s

controller

10.2 inch   touch controller

Cooling system

Air cooling




parameter

Focus lens

165mm

Minimum   linewidth

0.012mm

Repetitionaccuracy

0.003mm

Marking   range

100mm*100mm(optinal)

Positioning   mode

Blue light   indication

Number of   rows

Any line   within the marking range

Production   line speed

0~130m/min   (depending on the material)





Software

Multilingual

English,   Spanish, German, Chinese, Russian, Arabic, etc

jurisdiction

Multi user   management authority

operating   system

Linuxsystem

Inkjet mode

Static, analog,   encoder

Reserved   signal

Start, print   status, finish, fault

data   protection

With power   failure data protection energy

monitor

Provide   overspeed alarm function

De crossing

Automatic   removal of intersections

Coding   software

Single and double   machine code sending


Support type

typeface

Chinese and   English, numbers, traditional, etc

file format

BMP/DXF/HPGL/JPEG/PLT

bar code

CODE39,CODE128,CODE126,QR


Servicing   parameters

Power Supply

220V/50HZ

Power   consumption

200W

Net weight   of machine

6kg

Overall   dimension

530mmX140mmX165mm

environment

requirement

External   temperature0℃45℃;humidity≤95
