Portable Laser engraving machine Machine For Metal handheld laser coder Portable Handheld Laser Engraving for Different Materials Marking and Engraving
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Portable Laser Marking | Product ID | CL800B |
|---|---|---|---|
| Product Tags | Fiber Laser Marking Machine | Laser Power | 20W/30W/50W/ |
| Laser Life | ＞100,000 Hours | Power Supply | 90V~240V 50/60HZ |
| Power Consumption | 300-500W | Marking Range | 75X75mm(Standard) |
| Optional | 150X150mm,300X300mm |
Product Description

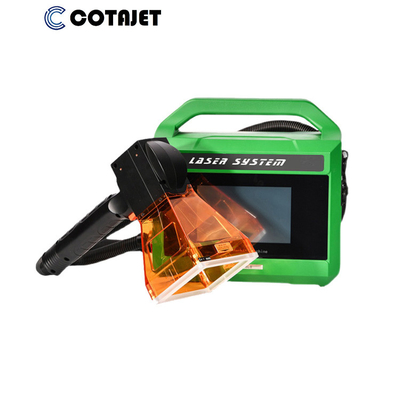

Portable Laser Engraving Machine for Metal - Handheld Laser Coder for Various Materials
Product Specifications
| Attribute | Value |
|---|---|
| Material | Portable Laser Marking |
| Product ID | CL800B |
| Product Tags | Fiber Laser Marking Machine |
| Laser Power | 20W/30W/50W |
| Laser Life | ＞100,000 hours |
| Power Supply | 90V~240V 50/60HZ |
| Power Consumption | 300-500W |
| Marking Range | 75X75mm (Standard) |
| Optional | 150X150mm, 300X300mm |
Product Description

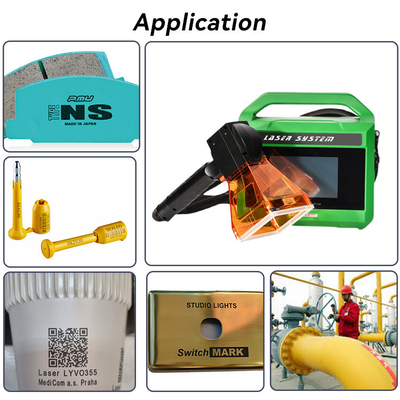

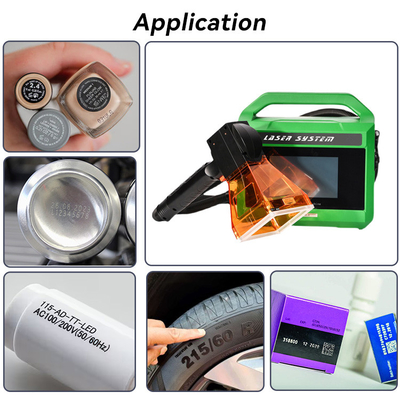

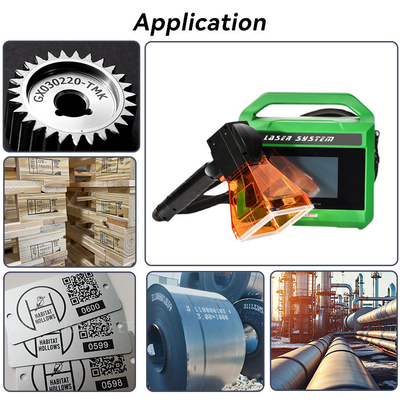

The Portable Laser Engraving Machine is designed for marking on various materials including metal, plastic, and rubber. Ideal for industrial applications such as:
- Oil and gas pipeline marking
- Firearms and ammunition engraving
- Nameplate and industrial tag marking
- Plastic and rubber part identification
- Security seal and bolt marking
Portable Handheld Laser Engraving Marker Features
The Battery Version Fiber Laser Engraving Machine offers exceptional mobility for laser marking and engraving applications. This portable solution enables easy etching of large, heavy, or fixed objects with professional results.
Key Advantages:
- Produces smooth, clear, and permanent marks on metal surfaces
- Features the industry's best electro-optical conversion rate
- Incorporates advanced laser generator technology
- Robust construction with stable power output
- Efficient air cooling system
- Ergonomic and portable design
Technical Specifications
| Parameter | 20W | 30W |
|---|---|---|
| Machine Material | All aluminum sandblasting oxidation | |
| Laser Service Life | ＞100,000 hours | |
| Laser Wavelength | 1064nm | |
| Output Power | ≥23W | ≥34W |
| Marking Speed | ≤12000mm/s | |
| Controller | 10.2 inch touch controller | |
| Cooling System | Air cooling | |
| Parameter | Specification |
|---|---|
| Focus Lens | 165mm |
| Minimum Line Width | 0.012mm |
| Repetition Accuracy | 0.003mm |
| Marking Range | 100mm*100mm (optional) |
| Positioning Mode | Blue light indication |
| Production Line Speed | 0~130m/min (material dependent) |
Software & Compatibility
| Feature | Specification |
|---|---|
| Languages | English, Spanish, German, Chinese, Russian, Arabic, etc. |
| User Management | Multi-user authority system |
| Operating System | Linux system |
| File Formats | BMP/DXF/HPGL/JPEG/PLT |
| Barcode Support | CODE39, CODE128, CODE126, QR |
Service Parameters
| Parameter | Specification |
|---|---|
| Power Supply | 220V/50HZ |
| Power Consumption | 200W |
| Net Weight | 6kg |
| Dimensions | 530mm × 140mm × 165mm |
| Environment Requirements | Temperature: 0℃－45℃; Humidity ≤95% |
