20W 30W 50W 100W Desktop Laser Marking Machine Portable Hand Held Laser Marking Machine

Place of Origin Wuhan,China
Brand Name COTAJET
Certification CE,Rohs,SGS
Model Number CL800A-Plus
Delivery Time 5-7 work day
Payment Terms TT,L/C,Western union

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Portable Laser Marking Product ID CL800A-Plus
Product Tags Fiber Laser Marking Machine Laser Power 20W/30W/50W/100W
Laser Life >100,000 Hours Power Supply 90V~240V 50/60HZ
Power Consumption 300-500W Marking Range 75X75mm(Standard)
Optional 150X150mm,300X300mm
Highlight

100W Desktop Laser Marking Machine

,

Desktop Laser Marking Machine Portable

,

Portable Hand Held Laser Marking Machine

Leave a Message
Product Description

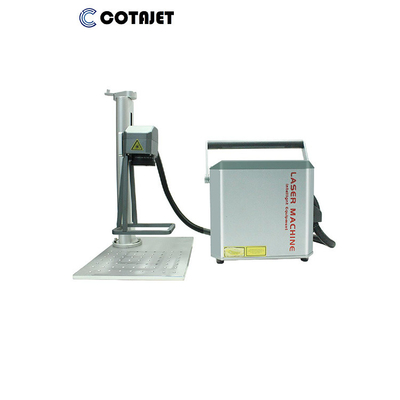

Desktop Laser Coder with handheld Laser Marking Machine for Portable Marking on Machinery





Cotajet is very strong for industry application, for example, mark on oil pipeline,mark and print on gas pipeline,mark on guns, mark on bullet,

mark on nameplate,marking on plastic and rubber parts, marking on plastic seal and bolt seal.

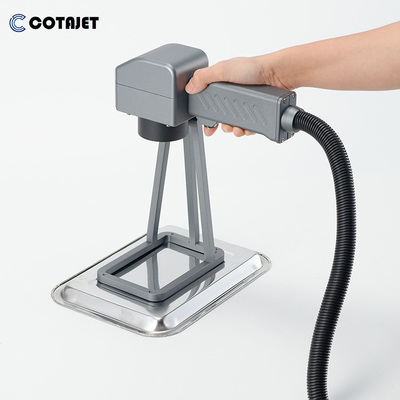

Portable handheld fiber laser marking machine is an intelligent laser marking system that supports WIFI/Bluetooth/USB/APP to remote control the laser marking machine for marking. The handheld laser marking machine marks IoT assets for IoT management.

Feature a lightweight and portable design, making it convenient for handheld operation.

Suitable for various scenes and working environments, capable of both indoor fixed office work and flexible outdoor operations.

Integrates a flexible software control system, capable of achieving various marking effects and customizing multiple patterns.



Features



Portable laser marking machine is equipped with a high-precision 2D scanning head. With laser etching completed within 20s, it achieves fast marking.

Ideal for marking flat metal and non-metal surfaces, handheld laser marker is an excellent solution for permanent, high-contrast and detailed markings.

- Support for multiple barcode types, including CODE39, CODE128, CODE126, QR, Zint Code, DM, and Visual Code, etc.

- Small in size. The overall body weight is ≤6kg, with the marking head weighing only 0.8kg. It is compact and convenient, unaffected by site interference.

- Easy to use. Intelligent touch screen operation, simple selection, red light preview, one-key marking.

- High safety. Equipped with emergency stop function, material detection software, and multiple protection measures.

- High adaptability. It is suitable for a wide range of marking materials and various forms of marking content.

- Long working hours. Rechargeable battery, working time about 4 hours, standby about 8 hours.

- Easy to carry. Optional dual shoulder straps or customized rolling luggage, easy to carry or drag.

- The data terminal remotely controls the handheld laser marking machine through Wi-Fi, Bluetooth, and USB for marking operations.

- The data terminal integrates the marking APP to directly control the handheld laser marker for marking.



project

Parametertable

20W

30W





characteristic

Machine   material

All aluminum   sandblasting oxidation

Laser

The service   life is more than 100000 hours

Laser   wavelength

1064nm

output power

≥23W

≥34W

Marking   speed

≤12000mm/s

controller

10.2 inch   touch controller

Cooling system

Air cooling







parameter

Focus lens

165mm

Minimum   linewidth

0.012mm

Repetitionaccuracy

0.003mm

Marking   range

110mm*110mm(optinal)

Positioning   mode

Blue light   indication

Number of   rows

Any line   within the marking range

Production   line speed

0~130m/min   (depending on the material)









Software

Multilingual

English,   Spanish, German, Chinese, Russian, Arabic, etc

jurisdiction

Multi user   management authority

operating   system

Linuxsystem

Inkjet mode

Static, analog,   encoder

Reserved   signal

Start, print   status, finish, fault

data   protection

With power   failure data protection energy

monitor

Provide   overspeed alarm function

De crossing

Automatic   removal of intersections

Coding   software

Single and double   machine code sending



Support type

typeface

Chinese and   English, numbers, traditional, etc

file format

BMP/DXF/HPGL/JPEG/PLT

bar code

CODE39,CODE128,CODE126,QR



Servicing   parameters

Power Supply

220V/50HZ

Power   consumption

200W

Net weight   of machine

8kg

Overall   dimension

530mmX140mmX165mm

environment

requirement

External   temperature0℃45℃;humidity≤95
