3W 5W 10W UV Laser Coder Machine For Expiry Date Printing Machine
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Laser Markers | Product ID | CL600A |
|---|---|---|---|
| Power | 3W/5W/10W | Laser Life | >20000-30000 Working Hours |
| Marking Speed | ≤12000mm/s | Controller | 10.2 Inch Touch Controller |
| Marking Range | 110X110mm(Standard) Optional:200X100mm,500X500mm | Power Supply | 220V/50HZ |
| Power Consumption | 400W | ||
| Highlight | UV Laser Coder Machine,10W UV Laser Coding Machine,Laser Expiry Date Printing Machine |
||
Product Description
UV Laser coder and laser markers for Expiry Date Printing Machine

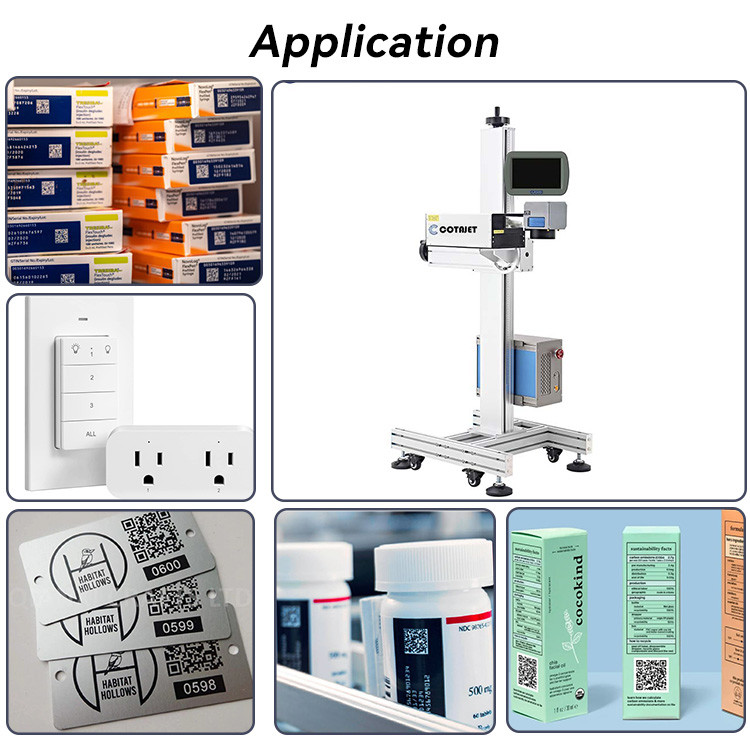

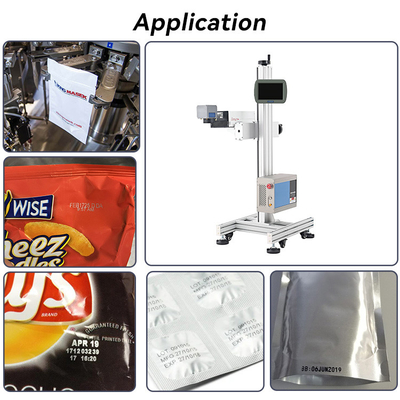

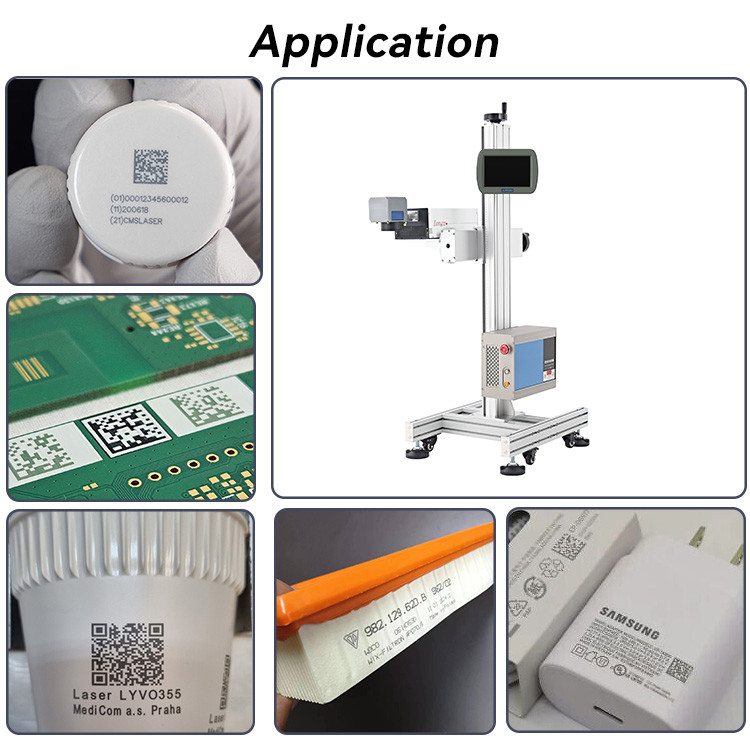

UV Laser Marking for Cosmetics, expiry date on Personal and Home Care,Batch coding on shrink film.
Increased product throughput in a shorter time and line utilisation cost savings with marking up to 2000 characters/second
Reduced risk of damage to packaging as the UV laser creates minimal thermal stress on substrates compared to CO2 and Fibre marking
Highly visible and highly readable traceability codes delivered by smoother-edged codes with higher contrast
Main Features

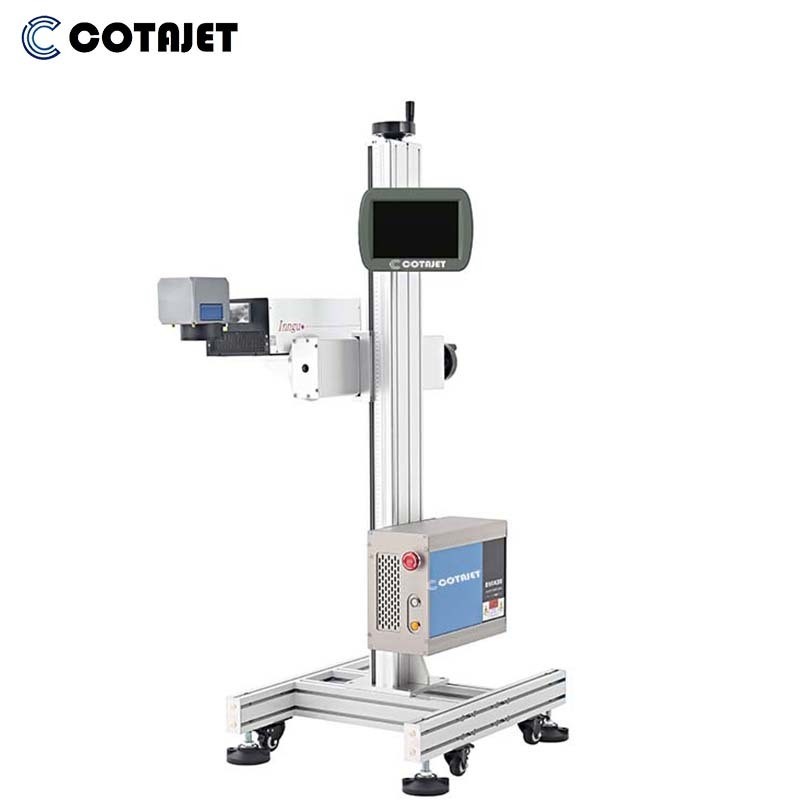

COTAJET UV laser marking system delivers high-contrast cold marking permanent codes enabling product lifetime track and trace for pharmaceutical, medical device and cosmetic manufacturers. Prevent the risk of counterfeiting and meet industry regulations with crisp, vision readable 2D codes on white HDPE and LDPE plastic, and other synthetic fiber materials
Technical Parameters
|
project |
Parametertable |
UV-3W |
UV-5W |
UV-10W |
|
characteristic |
Machine material |
All aluminum sandblasting oxidation |
||
|
Laser |
The service life is more than 20000-30000 hours |
|||
|
Laser wavelength |
355nm |
|||
|
output power |
≥4.2W |
≥6.5W |
≥12W |
|
|
Marking speed |
≤12000mm/s |
|||
|
controller |
10.2 inch touch controller |
|||
|
Cooling system |
Water cooling (with chiller) |
|||
|
parameter |
Focus lens |
210mm |
||
|
Minimum linewidth |
0.01mm |
|||
|
Repetitionaccuracy |
0.001mm |
|||
|
Marking range |
110mm*110mm(optinal) |
|||
|
Positioning mode |
Blue light indication |
|||
|
Number of rows |
Any line within the marking range |
|||
|
Production line speed |
0~130m/min (depending on the material) |
|||
|
Software |
Multilingual |
English, Spanish, German, Chinese, Russian, Arabic, etc |
||
|
jurisdiction |
Multi user management authority |
|||
|
operating system |
Linuxsystem |
|||
|
Inkjet mode |
Static, analog, encoder |
|||
|
Reserved signal |
Start, print status, finish, fault |
|||
|
data protection |
With power failure data protection energy |
|||
|
monitor |
Provide overspeed alarm function |
|||
|
De crossing |
Automatic removal of intersections |
|||
|
Coding software |
Single and double machine code sending |
|||
|
Support type |
typeface |
Chinese and English, numbers, traditional, etc |
||
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
|||
|
bar code |
CODE39,CODE128,CODE126,QR |
|||
|
Servicing parameters |
Power Supply |
220V/50HZ |
||
|
Power consumption |
800W |
|||
|
Net weight of machine |
40kg |
|||
|
Overall dimension |
640mmX160mmX206mm |
|||
|
environment |
requirement |
External temperature0℃－45℃;humidity≤95 |
||
