Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine

Place of Origin Wuhan,China
Brand Name COTAJET
Certification CE,Rohs,SGS
Model Number CL600B
Delivery Time 5-7 work day
Payment Terms TT,L/C,Western union

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material UV Laser Marking System Product ID CL600B
Power 3W/5W/10W Laser Life >20000-30000 Working Hours
Marking Speed ≤12000mm/s Controller 10.2 Inch Touch Controller
Marking Range 110X110mm(Standard) Optional:200X100mm,500X500mm Power Supply 220V/50HZ
Power Consumption 400W
Highlight

Industrial UV Laser Printer Machine

,

UV Laser Printing Machine

,

UV Flying Laser Marking Machine

Leave a Message
Product Description
Industrial UV Laser Printer Machine, UV Flying Laser Marking Machine
Product Specifications
Material UV laser marking system
Product ID CL600B
Power 3W/5W/10W
Laser life >20000-30000 Working Hours
Marking speed ≤12000mm/s
Controller 10.2 inch touch controller
Marking range 110X110mm (Standard) Optional: 200X100mm, 500X500mm
Power Supply 220V/50HZ
Power consumption 400W
Product Overview

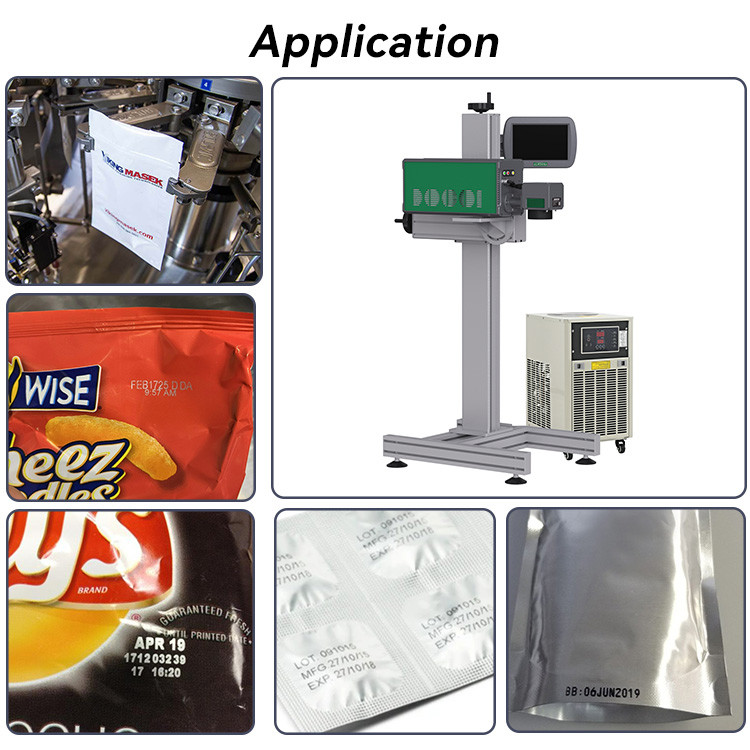

UV Industrial Laser Printer for high contrast marking on flexible films and foils flow wrap. Designed for flexible packaging solutions including printing and marking on flexible films, expiry date marking on film & flow wrap, and barcode/QR code marking on film.

Key Advantages
  • Zero consumables required during operation maximizes uptime
  • Air-cooled laser source virtually eliminates unscheduled downtime
  • No daily mechanical maintenance procedures increase productivity
  • High throughput up to 250 products per minute on both rotary and linear applications
  • UV wavelength enables high speed marking-on-the-fly of HDPE/LDPE packaging
  • Produces vision-readable 2D codes at speeds up to 5.0m/sec
Advanced Features
  • Cotajet Software ensures consistent high quality marks on rotational devices with minimal distortion
  • Repeatable high contrast color change for top grade vision readability on white HDPE/LDPE
  • SmartGraph software simplifies Arc Compensation parameter setup

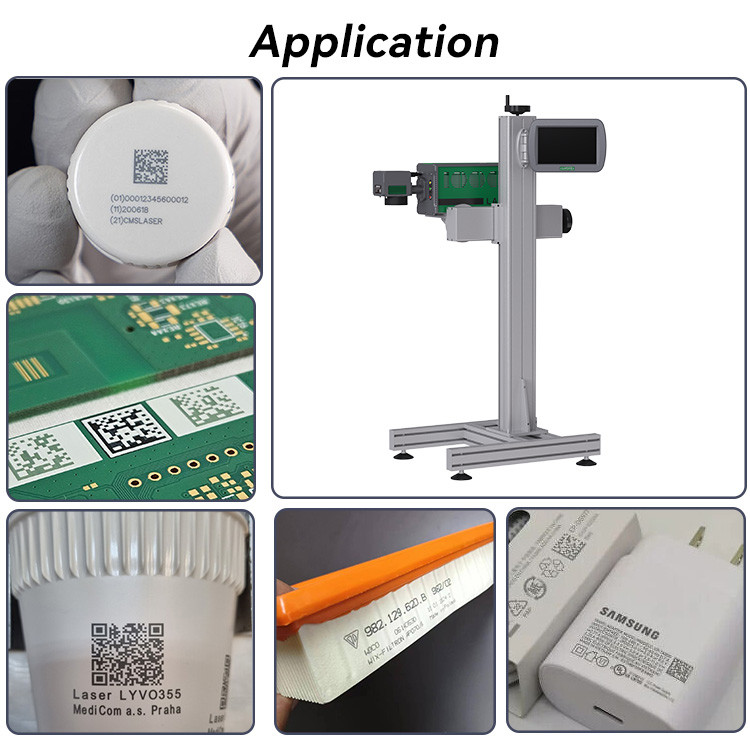

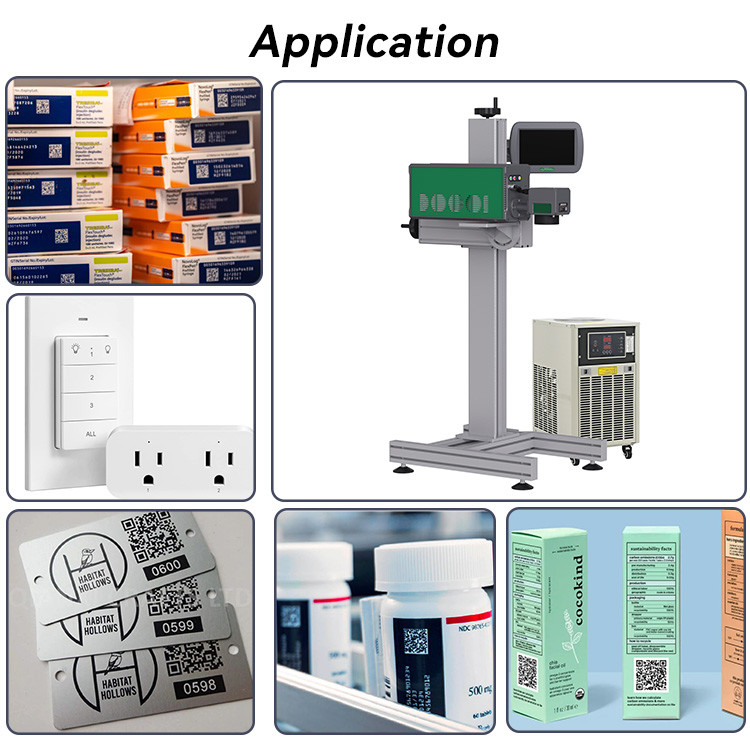

  • Mark any code, in any orientation, anywhere on the product
  • UV wavelength marks high resolution without need for additives or packaging revalidation
Technical Parameters
Parameter UV-3W UV-5W UV-10W
Output power ≥4.2W ≥6.5W ≥12W
Laser wavelength 355nm
Marking speed ≤12000mm/s
Minimum linewidth 0.01mm
Repetition accuracy 0.001mm
Production line speed 0~130m/min (material dependent)
Power consumption 800W
Net weight 40kg
Dimensions 640mm × 160mm × 206mm
Operating environment Temperature: 0℃-45℃; Humidity ≤95%

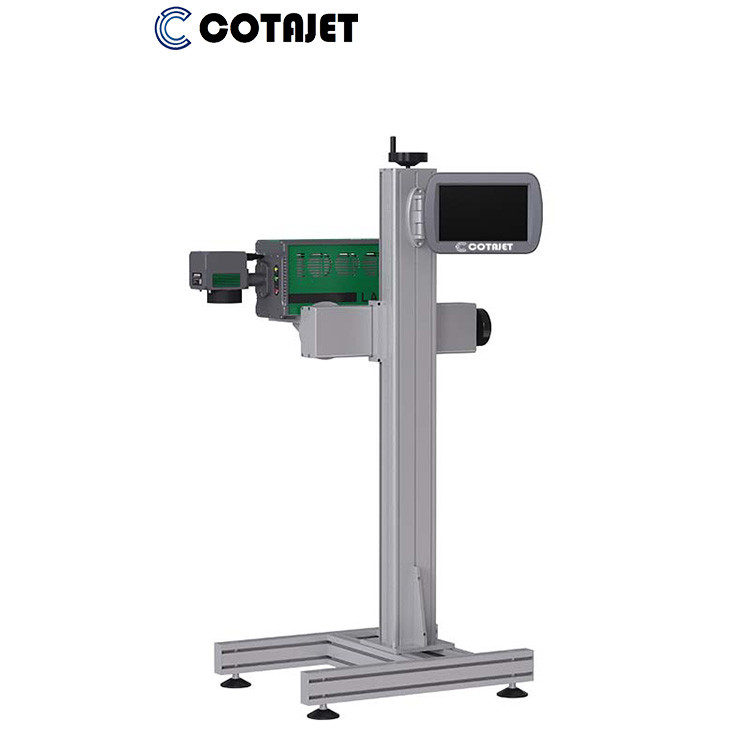

Product Images
Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine 0 Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine 1 Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine 2 Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine 3 Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine 4 Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine 5 Industrial UV Laser Printer Machine , UV Flying Laser Marking Machine 6
