3W 5W 10W UV Laser Marking Machine For Flexible Films / Rigid Plastics
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | UV Laser Marking | Product ID | CL600C |
|---|---|---|---|
| Power | 3W/5W/10W | Laser Life | >20000-30000 Working Hours |
| Marking Speed | ≤12000mm/s | Controller | 10.2 Inch Touch Controller |
| Marking Range | 110X110mm(Standard) Optional:200X100mm,500X500mm | Power Supply | 220V/50HZ |
| Power Consumption | 400W | ||
| Highlight | 3W UV Laser Marking Machine,5W UV Laser Marking Machine,10W UV Laser Marking Machine |
||
Product Description
3W 5W 10W UV Laser Marking Machine For Flexible Films / Rigid Plastics
Product Specifications
| Attribute | Value |
|---|---|
| Material | UV laser marking |
| Product ID | CL600C |
| Power | 3W/5W/10W |
| Laser life | >20000-30000 Working Hours |
| Marking speed | ≤12000mm/s |
| Controller | 10.2 inch touch controller |
| Marking range | 110X110mm(Standard) Optional:200X100mm,500X500mm |
| Power Supply | 220V/50HZ |
| Power consumption | 400W |
Product Overview
UV Laser Marking Machine for flexible films and rigid plastics. UV lasers are highly effective at marking on a wide range of materials, including plastic, films and foils, ceramic, and rubber. UV lasers employ a shorter ultraviolet wavelength and lower power compared to fiber and CO2 lasers. With their ability to create high-contrast marks using minimal heat, they are particularly useful for sensitive materials like flexible packaging and glass.
Key Features
Ideal solution for permanent marking on flexible films and rigid plastics
No consumables required, maintains substrate integrity
Higher production throughput with fast product marking
Simple integration into existing production lines
Easy-to-use operation with touch controller
Technical Parameters
| Project | Parameter | UV-3W | UV-5W | UV-10W |
|---|---|---|---|---|
| Characteristic | Machine material | All aluminum sandblasting oxidation | ||
| Laser service life | More than 20000-30000 hours | |||
| Laser wavelength | 355nm | |||
| Output power | ≥4.2W | ≥6.5W | ≥12W | |
| Parameter | Marking speed | ≤12000mm/s | ||
| Controller | 10.2 inch touch controller | |||
| Cooling system | Water cooling (with chiller) | |||
| Focus lens | 210mm | |||
| Minimum linewidth | 0.01mm | |||
| Repetition accuracy | 0.001mm | |||
| Software | Multilingual | English, Spanish, German, Chinese, Russian, Arabic, etc | ||
| User management | Multi user management authority | |||
| Operating system | Linux system | |||
| Inkjet mode | Static, analog, encoder | |||
| Reserved signal | Start, print status, finish, fault | |||
| Data protection | Power failure data protection | |||
| Monitor | Overspeed alarm function | |||
| Decrossing | Automatic removal of intersections | |||
| Coding software | Single and double machine code sending | |||
| Support type | Typeface | Chinese and English, numbers, traditional, etc | ||
| File format | BMP/DXF/HPGL/JPEG/PLT | |||
| Barcode | CODE39,CODE128,CODE126,QR | |||
| Servicing parameters | Power Supply | 220V/50HZ | ||
| Power consumption | 800W | |||
| Net weight | 40kg | |||
| Dimensions | 640mmX160mmX206mm | |||
| Environment requirements | External temperature 0℃－45℃; humidity ≤95% | |||

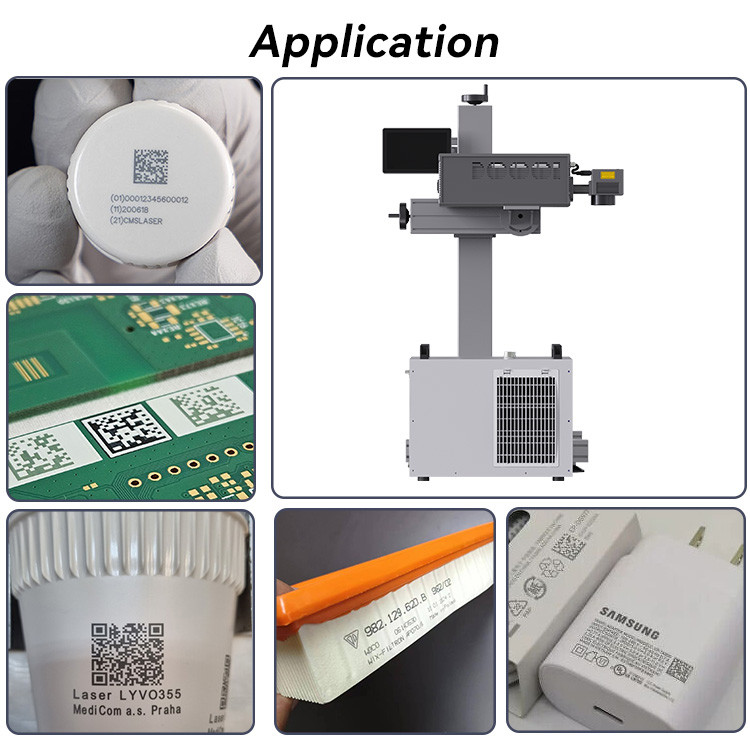

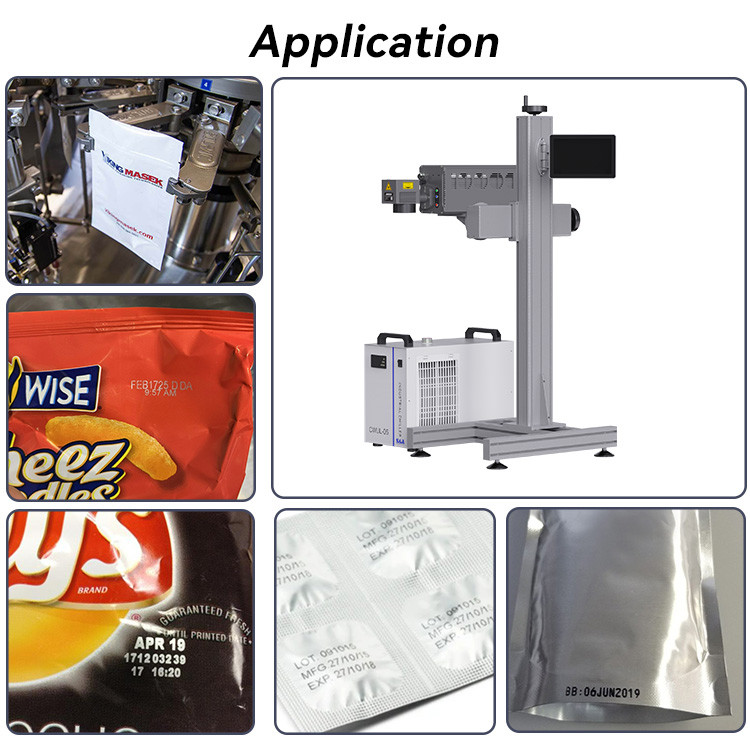

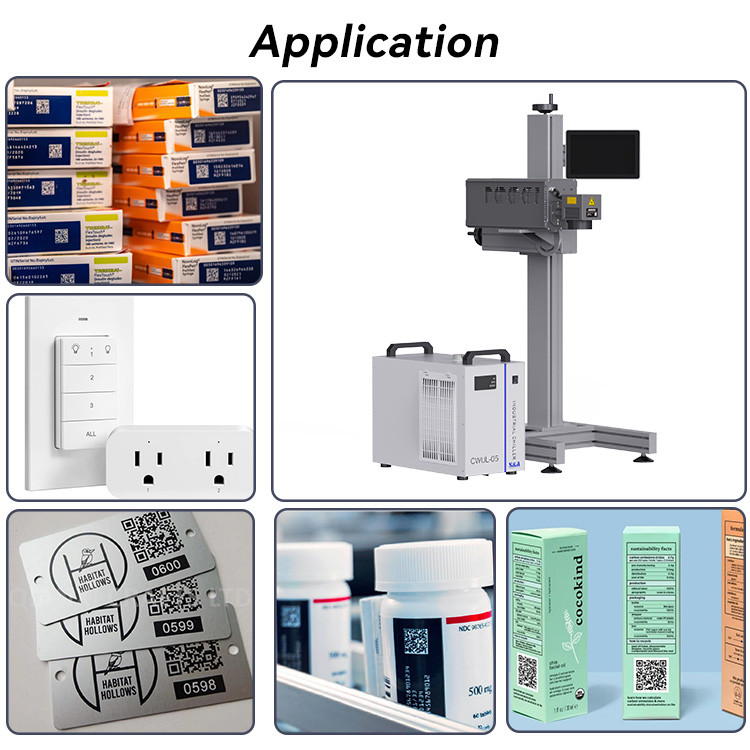

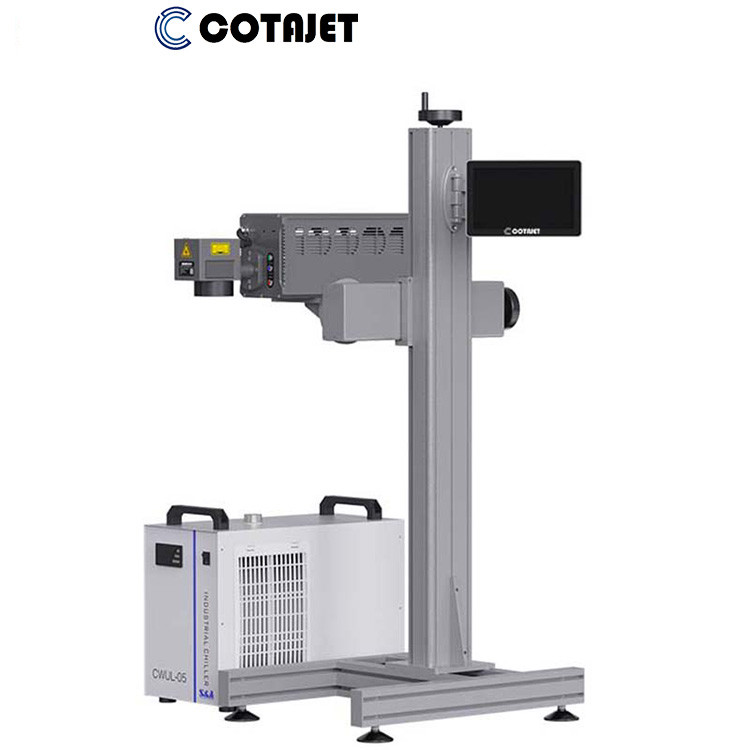

Product Images
