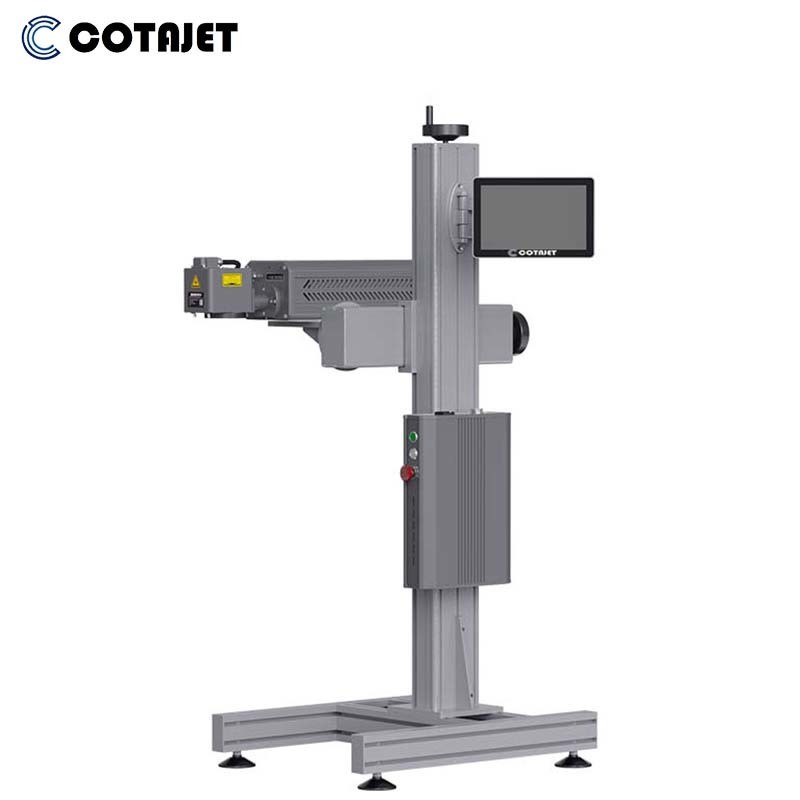

Flying CO2 Laser Marking Machine 220V 50HZ With Coding / Marking
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Expiry Date Marking | Product ID | CL500A |
|---|---|---|---|
| Marking Speed | ≤12000mm/s | Laser Wavelength | 9.30um/10.2um/10.6um |
| Laser Power | 30W/40W/60W | Controller | 10.2 Inch Touch Controller |
| Marking Range | 110X110mm(Standard) Optional:150X150mm,300X300mm | Production Line Speed | 0~130m/min (depending On The Material) |
| Highlight | CO2 Laser Marker 220V,Flying CO2 Laser Marking Machine,Flying CO2 Laser Marker |
||
Product Description

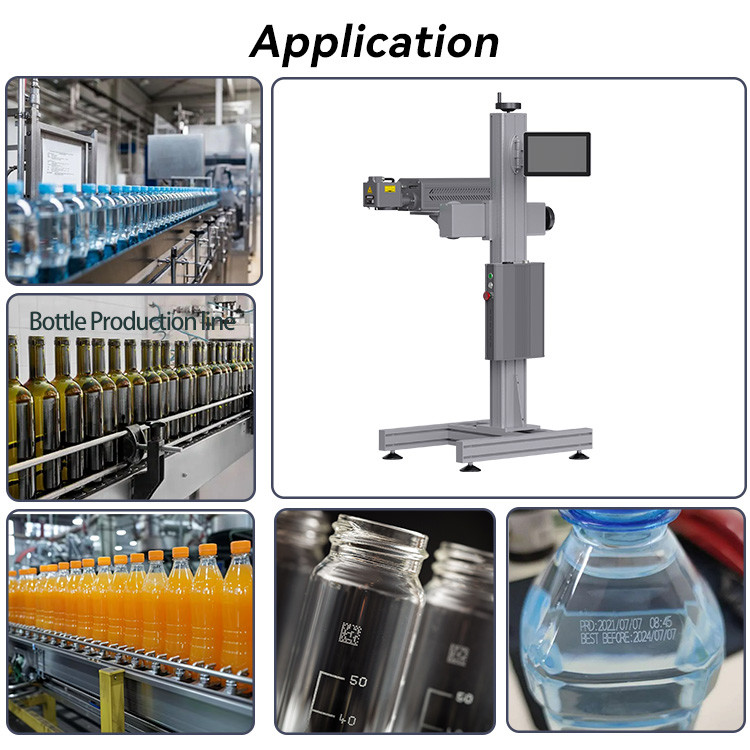

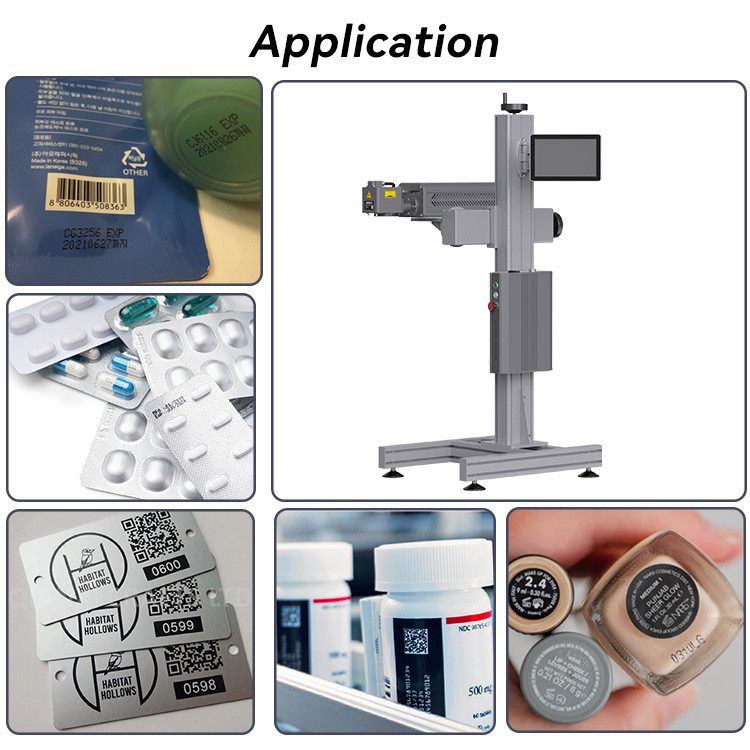

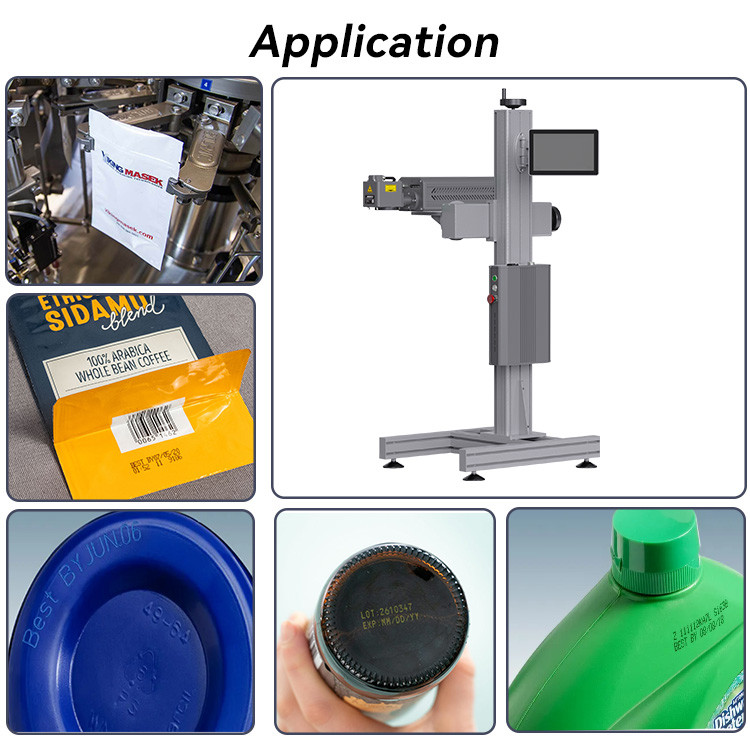

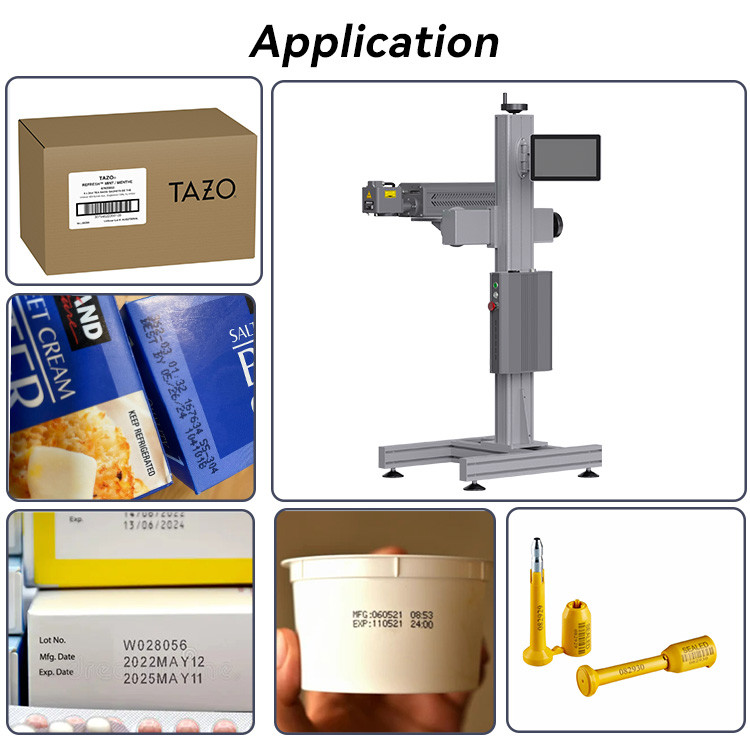

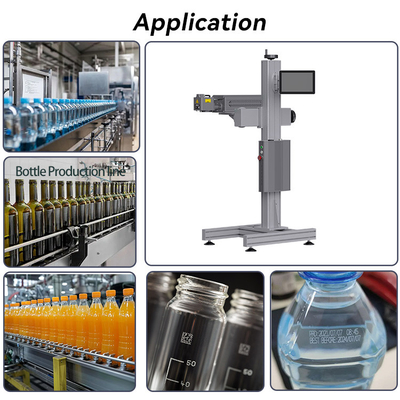

CO2 Laser Marker with coding and marking for master carton and glass bottle
COTAJET CO2 laser markers are incredibly versatile. They can mark opaque objects like paper, wood, rubber, ceramics, and transparent objects like glass.
Crisp, clear coding on glass, even at high line speeds, with cotajet, a unique set of parameters
Flip, mirror or curve text – easily code onto difficult shapes
Over 20,000 different configurations to economically meet your coding requirements
Wide web applications for large area coding or multiple lines of products
|
project |
Parametertable |
CO2-30W |
CO2-40W |
CO2-60W |
|
characteristic |
Machine material |
All aluminum sandblasting oxidation |
||
|
Laser |
The service life is more than20000-30000 hours |
|||
|
Laser wavelength |
1060nm |
|||
|
output power |
≥38W |
≥43W |
≥70W |
|
|
Marking speed |
≤12000mm/s |
|||
|
controller |
10.2 inch touch controller |
|||
|
Cooling system |
Air cooling |
|||
|
parameter |
Focus lens |
145mm |
||
|
Minimum linewidth |
0.03mm |
|||
|
Repetitionaccuracy |
0.01mm |
|||
|
Marking range |
110mm*110mm(optinal) |
|||
|
Number of rows |
Any line within the marking range |
|||
|
Production line speed |
0~130m/min (depending on the material) |
|||
|
Software |
Multilingual |
English, Spanish, German, Chinese, Russian, Arabic, etc |
||
|
jurisdiction |
Multi user management authority |
|||
|
operating system |
Linuxsystem |
|||
|
Inkjet mode |
Static, analog, encoder |
|||
|
Reserved signal |
Start, print status, finish, fault |
|||
|
data protection |
With power failure data protection energy |
|||
|
monitor |
Provide overspeed alarm function |
|||
|
De crossing |
Automatic removal of intersections |
|||
|
Coding software |
Single and double machine code sending |
|||
|
Support type |
typeface |
Chinese and English, numbers, traditional, etc |
||
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
|||
|
bar code |
CODE39,CODE128,CODE126,QR |
|||
|
Servicing parameters |
Power Supply |
220V/50HZ |
||
|
Power consumption |
800W |
|||
|
Net weight of machine |
45kg |
|||
|
Overall dimension |
nose:666mmX165mmX157mm |
|||
|
environment |
requirement |
External temperature0℃－45℃;humidity≤95 |
||
