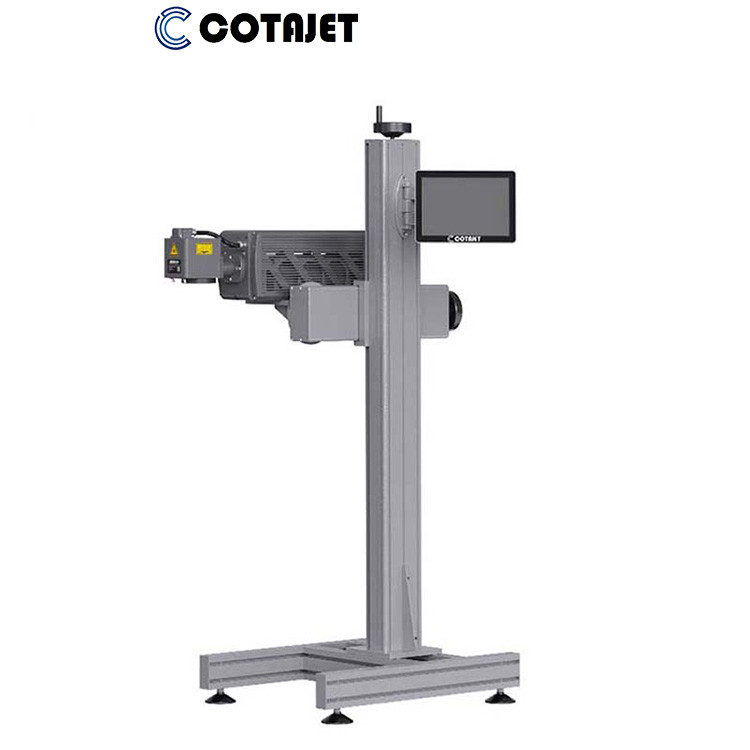

PET Bottle CO2 Laser Marking Machine 0-130m/min With Laser Coder

Place of Origin Wuhan,China
Brand Name COTAJET
Certification CE,Rohs,SGS
Model Number CL500C
Delivery Time 5-7 work day
Payment Terms TT,L/C,Western union

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Laser Coding On PET Bottle Product ID CL500C
Product Tags CO2 Laser Marking Machine Laser Power 30W/40/W60W
Marking Speed ≤12000mm/s Laser Wavelength 9.30um/10.2um/10.6um
Controller 10.2 Inch Touch Controller Marking Range 110X110mm(Standard) Optional:150X150mm,300X300mm
Production Line Speed 0~130m/min (depending On The Material)
Highlight

PET Bottle Laser Marking Machine

,

CO2 Laser Marking Machine 130m/min

,

PET Bottle CO2 Laser Marking Machine

Leave a Message
Product Description

CO2 Laser Marking with laser coder for PET Bottle



Cotajet CO2 laser marking on water bottle, expiry date on Pet bottle,coding and marking on PET bottle,laser coding on plastic bottles and containers,mark on glass bottle, bottle coding,coding solutions for plastic and rubber parts.



High-speed marking capability prints up to 2,000 characters per second of text, bar codes, graphics, and other information

High-resolution marking head delivers high-quality and permanent codes to support product traceability and anti-counterfeiting

Variety of lenses deliver one of the largest marking areas while options like beam turning unit options simplify integration

Multiple marking heads and wavelengths provide the flexibility to code a wide range of materials such as plastics, wood, glass, ceramics, and coated metals

Up to 45,000 hours of laser source life expectancy offers extended operational life, reliable performance, and reduced cost of ownership

Air-cooled laser source helps reduce maintenance intervals and additional costs



Main Characters:

  1. CO2 laser marking machines are renowned for their versatility and precision across many applications. Suitable for numerous applications, their ability to mark a wide range of materials, including plastics, glass, and paper, is helpful.

  2. Another benefit of a CO2 laser marker is its permanence. High-energy CO2 laser beams produce long-lasting, readable markings that are immune to fading, abrasion, and corrosion. These durable markings are crucial for applications where adherence to stringent traceability and identification standards is necessary.

  3. Also, CO2 laser marking is a non-contact process, which means there’s minimal wear on the machine and the materials being marked. This feature decreases both material waste and maintenance costs. If these benefits weren't enough, the rapid performance of CO2 laser etching machines also increases output and improves manufacturing operations' efficiency.

Parameter:



Item

Parametertable

CO2-30W

CO2-40W

CO2-60W





characteristic

Machine   material

All aluminum sandblasting oxidation

Laser

The service   life is more than20000-30000 hours

Laser   wavelength

1060nm

output power

≥38W

≥43W

≥70W

Marking   speed

≤12000mm/s

controller

10.2 inch touch controller

Cooling   system

Air Cooling







parameter

Focus lens

145mm

Minimum   linewidth

0.03mm

Repetitionaccuracy

0.01mm

Marking   range

110mm*110mm(optinal)

Number of   rows

Any line   within the marking range

Production   line speed

0~130m/min (depending on the material)









Software

Multilingual

English,   Spanish, German, Chinese, Russian, Arabic, etc

jurisdiction

Multi user   management authority

operating   system

Linuxsystem

Inkjet mode

Static,   analog, encoder

Reserved   signal

Start, print   status, finish, fault

data   protection

With power   failure data protection energy

monitor

Provide   overspeed alarm function

De crossing

Automatic   removal of intersections

Coding   software

Single and   double machine code sending



Support type

typeface

Chinese and   English, numbers, traditional, etc

file format

BMP/DXF/HPGL/JPEG/PLT

bar code

CODE39,CODE128,CODE126,QR



Servicing   parameters

Power Supply

220V/50HZ

Power consumption

800W

Net weight   of machine

45kg+38kg(Bracket)

Overall   dimension

nose:666mmX165mmX157mm

environment

requirement

External   temperature0℃45℃;humidity≤95
