CO2 Fly Laser Marking Machine 30W 40W 60W For Electronics / Pharmaceuticals
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Laser Marker | Product ID | CL500F |
|---|---|---|---|
| Product Tags | CO2 Laser Marking Machine | Laser Power | 30W/40W/60W |
| Marking Speed | ≤12000mm/s | Laser Wavelength | 9.30um/10.2um/10.6um |
| Controller | 10.2 Inch Touch Controller | Marking Range | 110X110mm(Standard) Optional:150X150mm,300X300mm |
| Production Line Speed | 0~240m/min (depending On The Material) | ||
| Highlight | Fly Laser Marking Machine 30W,CO2 Fly Laser Marking Machine,CO2 Flying Laser Marking Machine |
||
Product Description

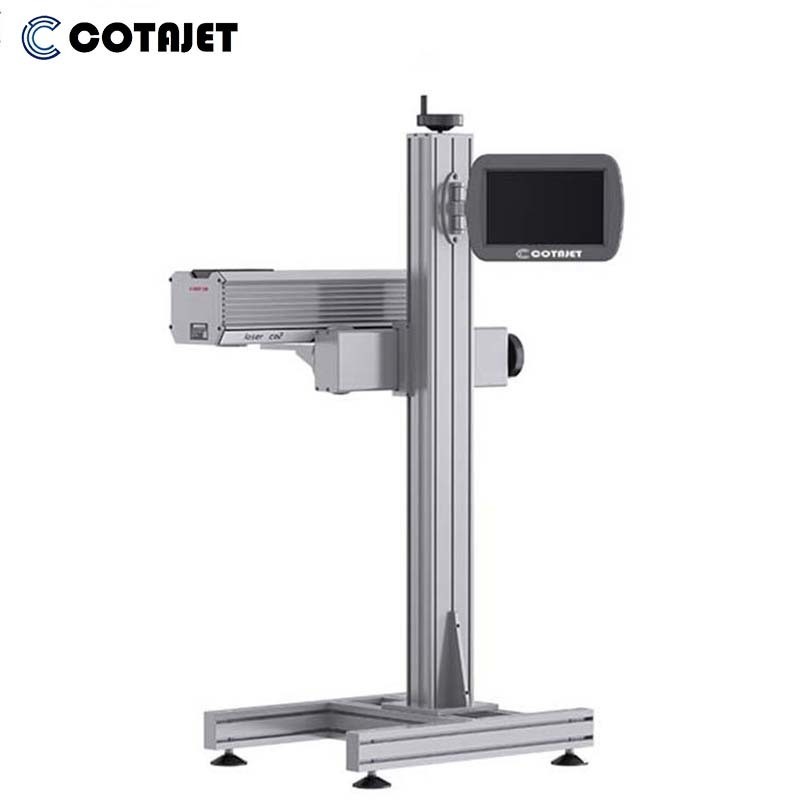

CO2 Fly Laser Marking Machine for Electronics and Pharmaceuticals
Cotajet laser coders – offering permanent, micro-printing capabilities ideal for anti-counterfeiting, or for coding directly onto capsules with codes as small as 0.8mm.
CO2 laser marking systems are a type of laser equipment used primarily for engraving, marking, or etching a wide range of materials. CO2 lasers are particularly effective on non-metal materials like plastic, glass, flexible film, labels, paperboard, and wood. The versatility of the CO2 laser makes it a popular choice for the food, beverage, cosmetics, pharmaceutical, tobacco, and extrusion industries.
Main Characters:
1. Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only
2. With unparalleled digitally-enabled capabilities, this 30-watt CO2 laser is the ultimate solution for marking complex and high-quality codes at lightning-fast speeds in a range of industries including food, beverage, cosmetics.
3.A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos – on fast lines with no compromise on code quality
Main Detail
|
Item |
Parametertable |
CO2-30W |
CO2-40W |
CO2-60W |
|
characteristic |
Machine material |
All aluminum sandblasting oxidation |
||
|
Laser |
The service life is more than20000-30000 hours |
|||
|
Laser wavelength |
1060nm |
|||
|
output power |
≥38W |
≥43W |
≥70W |
|
|
Marking speed |
≤12000mm/s |
|||
|
controller |
10.2 inch touch controller |
|||
|
Cooling system |
Air cooling |
|||
|
parameter |
Focus lens |
145mm |
||
|
Minimum linewidth |
0.03mm |
|||
|
Repetitionaccuracy |
0.01mm |
|||
|
Marking range |
110mm*110mm(optinal) |
|||
|
Number of rows |
Any line within the marking range |
|||
|
Production line speed |
0~130m/min (depending on the material) |
|||
|
Software |
Multilingual |
English, Spanish, German, Chinese, Russian, Arabic, etc |
||
|
jurisdiction |
Multi user management authority |
|||
|
operating system |
Linuxsystem |
|||
|
Inkjet mode |
Static, analog, encoder |
|||
|
Reserved signal |
Start, print status, finish, fault |
|||
|
data protection |
With power failure data protection energy |
|||
|
monitor |
Provide overspeed alarm function |
|||
|
De crossing |
Automatic removal of intersections |
|||
|
Coding software |
Single and double machine code sending |
|||
|
Support type |
typeface |
Chinese and English, numbers, traditional, etc |
||
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
|||
|
bar code |
CODE39,CODE128,CODE126,QR |
|||
|
Servicing parameters |
Power Supply |
220V/50HZ |
||
|
Power consumption |
800W |
|||
|
Net weight of machine |
45kg |
|||
|
Overall dimension |
nose:666mmX165mmX157mm |
|||
|
environment |
requirement |
External temperature0℃－45℃;humidity≤95 |
||
