CO2 Industrial Laser Marking Machine with date marking for PET bottle
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Laser Marking System | Product ID | CL500B |
|---|---|---|---|
| Laser Power | 30W/40W/60W | Marking Speed | ≤12000mm/s |
| Laser Wavelength | 9.30um/10.2um/10.6um | Controller | 10.2 Inch Touch Controller |
| Marking Range | 110X110mm(Standard) Optional:150X150mm,300X300mm | Product Tags | CO2 Laser Marking Machine |
| Production Line Speed | 0~130m/min (depending On The Material) | ||
| Highlight | CO2 Industrial Laser Marking Machine,Industrial CO2 Laser Marker,CO2 Industrial Laser Marker |
||
Product Description

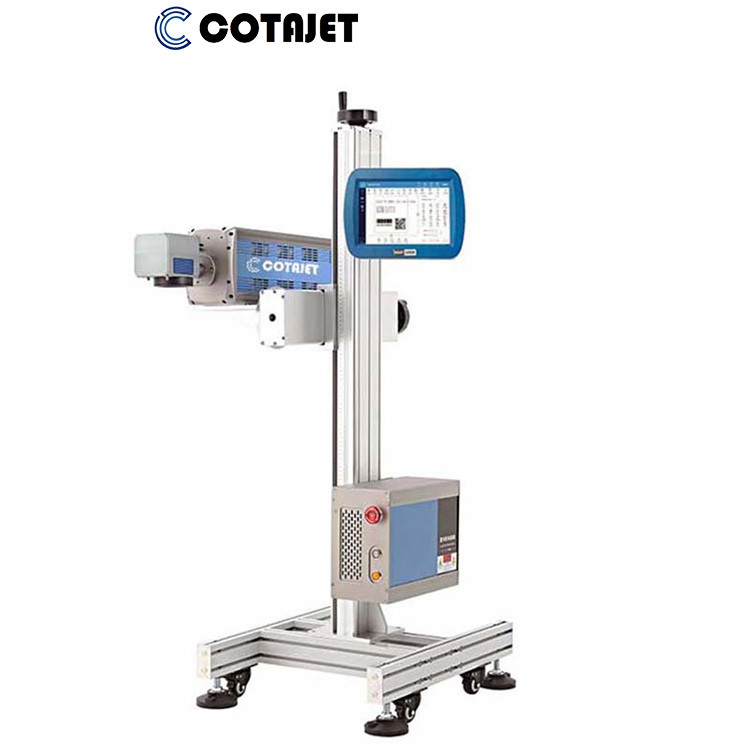

CO2 Industrial Laser Marking Machine with date marking for PET bottle

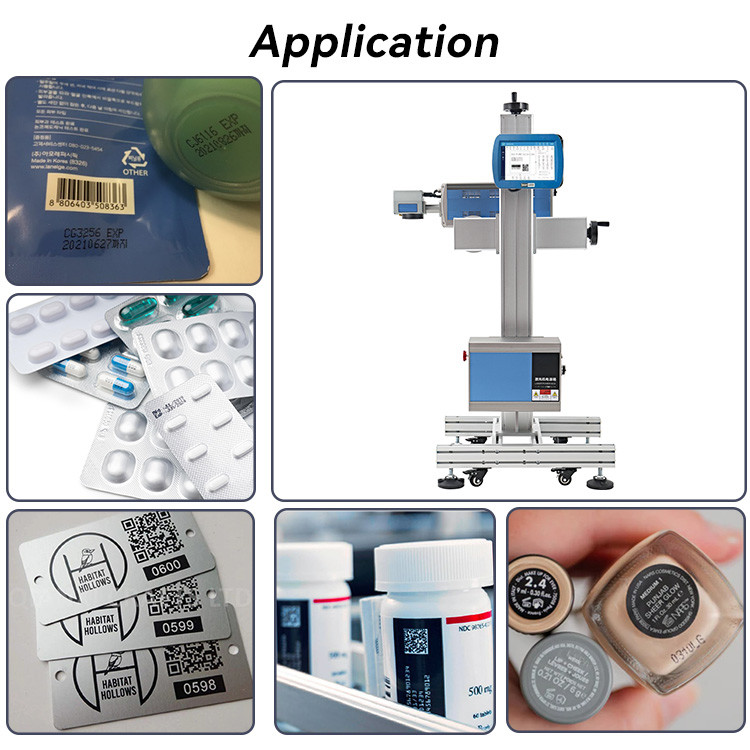

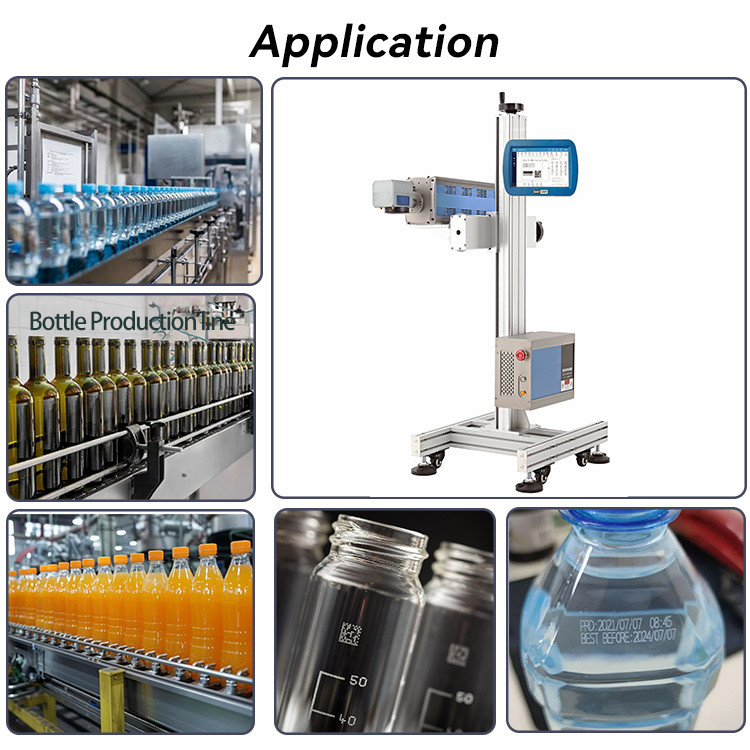

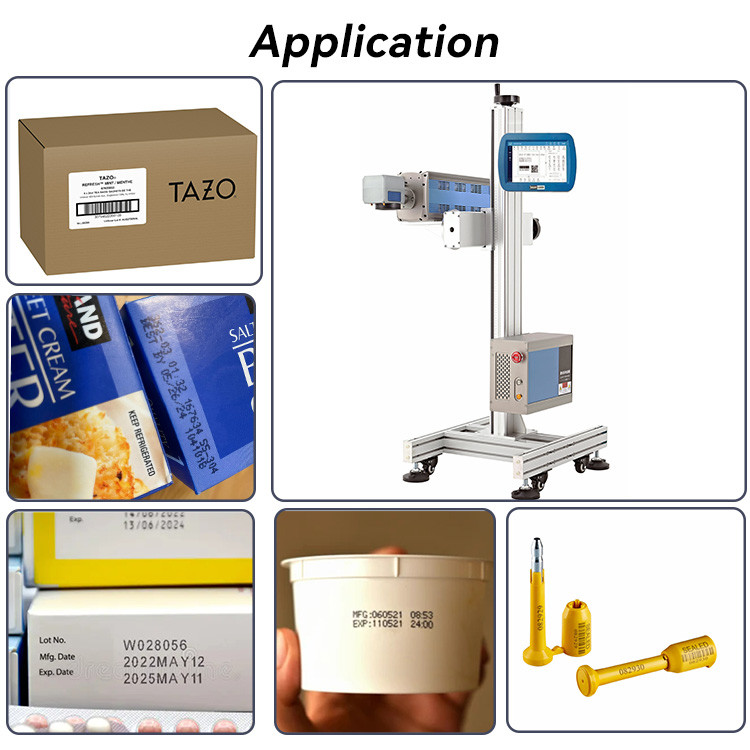

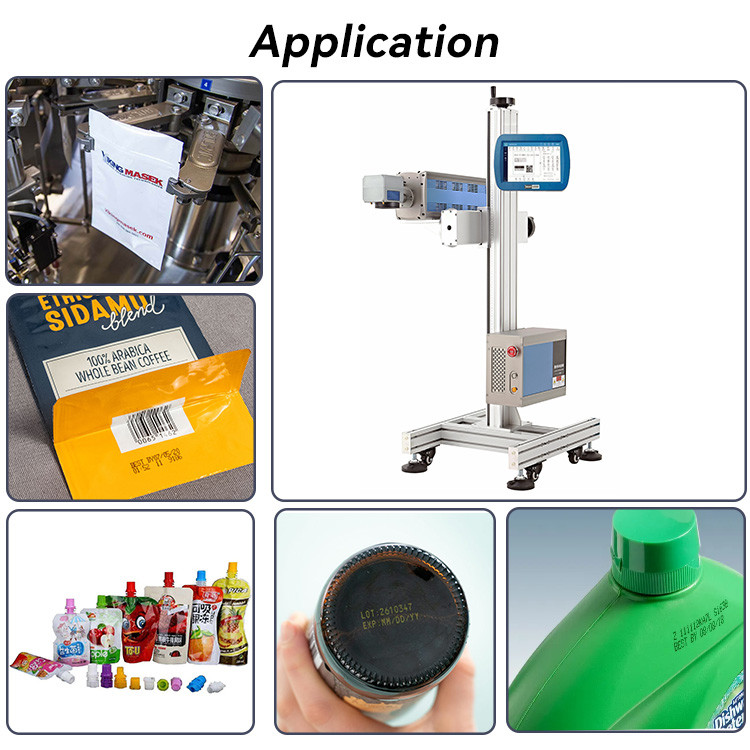

CO2 laser is use for Production Line Bottle Coders,Batch coding on cans and bottle, plastic cans, plastic bottle. MFG date on bottle.
There are three patterns for marking on plastic using a laser: Foaming, where the laser causes bubbling; chemical change, where the laser reacts with the pigments in the plastic; and carbonization, in which a high-energy laser is applied to the target surface.
The COTAJET Laser marking machine provides flexibility and durability without compromising on precision or speed.
Direct integration on existing production lines
Fully integrated unit
Optimal contrast
Modular system
Compatible with most communication protocols
Several wavelengths available
|
project |
Parametertable |
CO2-30W |
CO2-40W |
CO2-60W |
|
characteristic |
Machine material |
All aluminum sandblasting oxidation |
||
|
Laser |
The service life is more than20000-30000 hours |
|||
|
Laser wavelength |
1060nm |
|||
|
output power |
≥38W |
≥43W |
≥70W |
|
|
Marking speed |
≤12000mm/s |
|||
|
controller |
10.2 inch touch controller |
|||
|
Cooling system |
Air cooling |
|||
|
parameter |
Focus lens |
145mm |
||
|
Minimum linewidth |
0.03mm |
|||
|
Repetitionaccuracy |
0.01mm |
|||
|
Marking range |
110mm*110mm(optinal) |
|||
|
Number of rows |
Any line within the marking range |
|||
|
Production line speed |
0~130m/min (depending on the material) |
|||
|
Software |
Multilingual |
English, Spanish, German, Chinese, Russian, Arabic, etc |
||
|
jurisdiction |
Multi user management authority |
|||
|
operating system |
Linuxsystem |
|||
|
Inkjet mode |
Static, analog, encoder |
|||
|
Reserved signal |
Start, print status, finish, fault |
|||
|
data protection |
With power failure data protection energy |
|||
|
monitor |
Provide overspeed alarm function |
|||
|
De crossing |
Automatic removal of intersections |
|||
|
Coding software |
Single and double machine code sending |
|||
|
Support type |
typeface |
Chinese and English, numbers, traditional, etc |
||
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
|||
|
bar code |
CODE39,CODE128,CODE126,QR |
|||
|
Servicing parameters |
Power Supply |
220V/50HZ |
||
|
Power consumption |
800W |
|||
|
Net weight of machine |
45kg |
|||
|
Overall dimension |
nose:666mmX165mmX157mm |
|||
|
environment |
requirement |
External temperature0℃－45℃;humidity≤95 |
||
