Automatic Paper Feeding Machine 120W Carton Sheet Feeder Machine
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Cardboard Feeder Machine | Power Voltage | AC220V-50/60HZ |
|---|---|---|---|
| Power Consumption | 120W | Paging Belt Width | 30CM/40CM/50CM/60CM/80CM |
| Paging Width | 5-32CM/45CM/55CM/65CM/85CM | Speed | 30-80m/min |
| Paging Thickness | 0.1-5MM | ||
| Highlight | Automatic Paper Feeding Machine,Paper Feeding Machine 120W,Carton Sheet Feeder Machine |
||
Product Description
Automatic Paper Feeding Machine 120W Carton Sheet Feeder Machine
Key Features
- Frequency conversion speed regulation with high-speed automatic paging (60-600 pieces/min)
- Precision paging with high positioning accuracy and production efficiency
- Modular structural design for easy replacement of wearing parts
- Optional accessories including static elimination device and receiving hopper
Technical Specifications
| Attribute | Value |
|---|---|
| Material | Cardboard feeder Machine |
| Power Voltage | AC220V-50/60HZ |
| Power Consumption | 120W |
| Paging Belt Width | 30CM/40CM/50CM/60CM/80CM |
| Paging Width | 5-32CM/45CM/55CM/65CM/85CM |
| Speed | 30-80m/min |
| Paging Thickness | 0.1-5MM |
| Conveyor Width | 230mm |
| Conveyor Length | 960mm |
| Dimension | 1310X430X900mm |
| Controller | Frequency Control |
| Power Unit | Three-Phase asynchronous motor |
Applications
Ideal for automated feeding of cards, bags, labels, boxes, and other flat materials. Perfectly integrates with inkjet printers, laser machines, and labeling equipment for efficient production workflows.
Operation

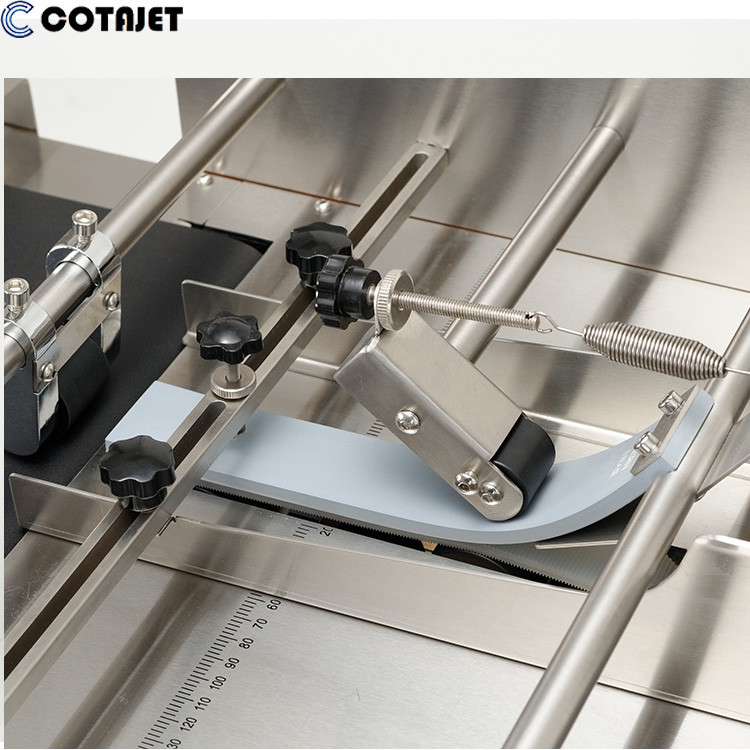

The machine places stacks of materials on the paging head and runs them through the reversing wheel, transferring objects to the conveyor belt as single pages. This enables synchronized operation with downstream equipment for printing, labeling, and other production processes.
Additional Specifications
| Model | CF310 |
|---|---|
| Power Protection | 6A AC integral socket with fuse |
| Appearance | Stainless Steel Polishing |
| Materials | Stainless Steel, Industrial section steel |
| Floor Stand | Adjustable base |
