30-80m/min Paper Feeder Machine Electric Friction Pagination Machine
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Friction Feeder | Power Voltage | AC220V-50/60HZ |
|---|---|---|---|
| Power Consumption | 120W | Paging Belt Width | 30CM/40CM/50CM/60CM/80CM |
| Paging Width | 5-32CM/45CM/55CM/65CM/85CM | Speed | 30-80m/min |
| Paging Thickness | 0.1-5MM | ||
| Highlight | Electric Pagination Machine,Friction Pagination Machine,80m/min Paper Feeder Machine |
||
Product Description

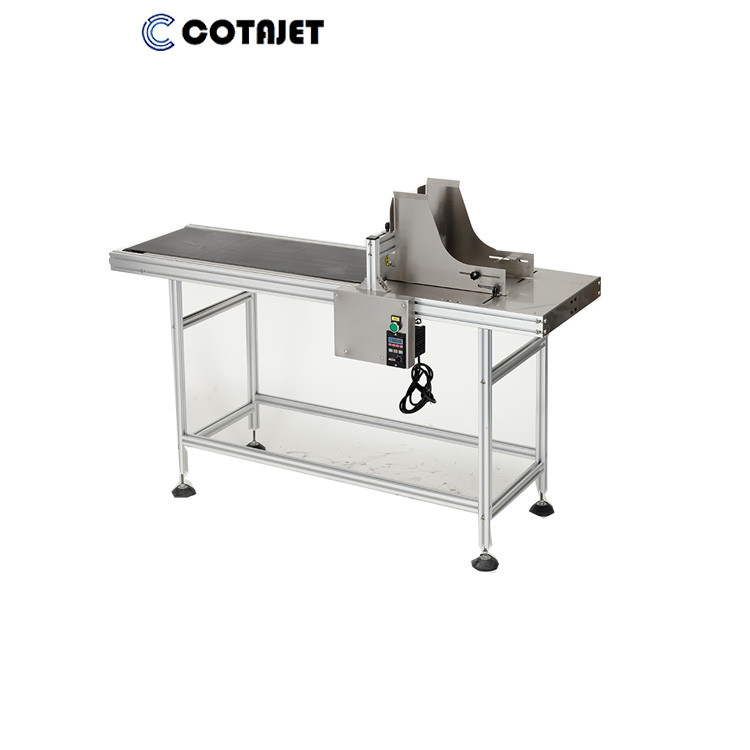

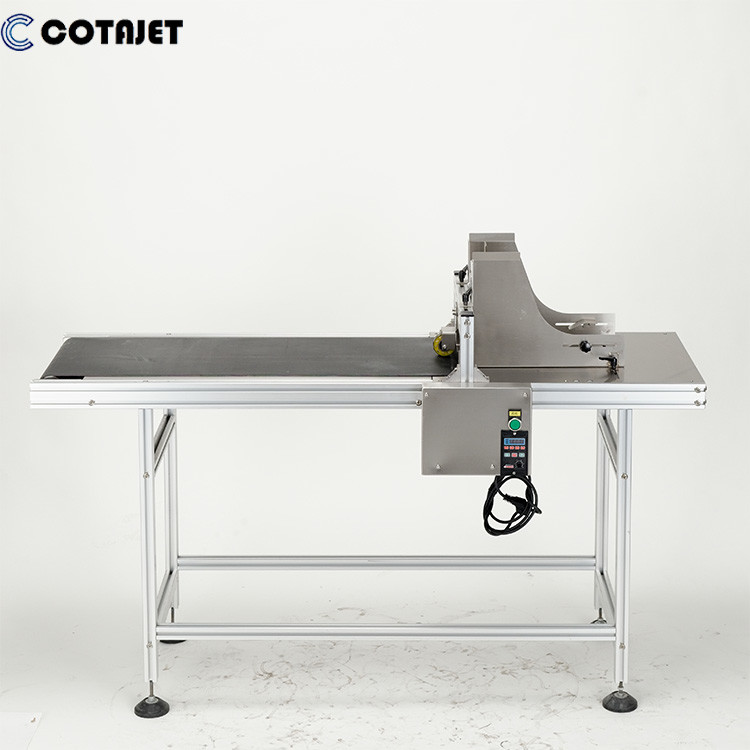

30-80m/min Paper Feeder Machine Electric Friction Pagination Machine
Key Specifications
| Attribute | Value |
|---|---|
| Material | Friction Feeder |
| Power Voltage | AC220V-50/60HZ |
| Power Consumption | 120W |
| Paging Belt Width | 30CM/40CM/50CM/60CM/80CM |
| Paging Width | 5-32CM/45CM/55CM/65CM/85CM |
| Speed | 30-80m/min |
| Paging Thickness | 0.1-5MM |
Product Overview
The Electric Friction Pagination Machine is a high-performance solution for automated material feeding in industrial printing and labeling applications. This friction-based system efficiently separates and feeds individual sheets or items for subsequent processing.
Applications
Ideal for processing various materials including:
- Cards and labels
- Bags and packaging materials
- Boxes and cartons
Operation

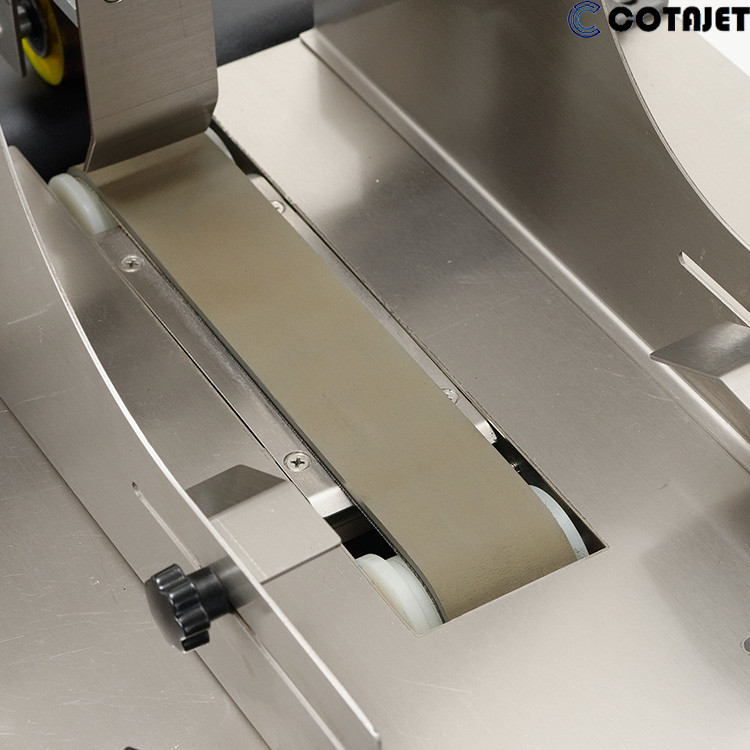

Stacks of materials are placed on the paging head and separated through friction. The machine transfers individual items to the conveyor belt for synchronized operation with:
- Inkjet printers
- Laser marking machines
- Labeling systems
This automation eliminates manual handling, maximizes equipment efficiency, and improves production workflow.
Key Features
- Variable speed control: Adjustable operation from 60-600 pieces/min
- High precision: Excellent positioning accuracy for consistent results
- Modular design: Easy replacement of wear components with independent shaft construction
- Flexible operation: Manual/automatic modes for easy setup and production
- Optional accessories: Laser pressure roller, static elimination, receiving hopper, and automatic bag receiving systems
Technical Specifications (CF300 Model)
| Parameter | Value |
|---|---|
| Power Voltage | AC220V-50/60HZ (requires grounding) |
| Paging Belt Width | 60mm |
| Paging Width Range | 80-300mm |
| Paging Length Range | 50-320mm |
| Paging Thickness | 0.05-5mm |
| Speed Options | 10-50m/min or 40-115m/min |
| Motor Power | 120W (low speed) or 250W (high speed) optional |
| Conveyor Dimensions | 250mm width × 1000mm length |
| Machine Dimensions | 1500×520×900mm |

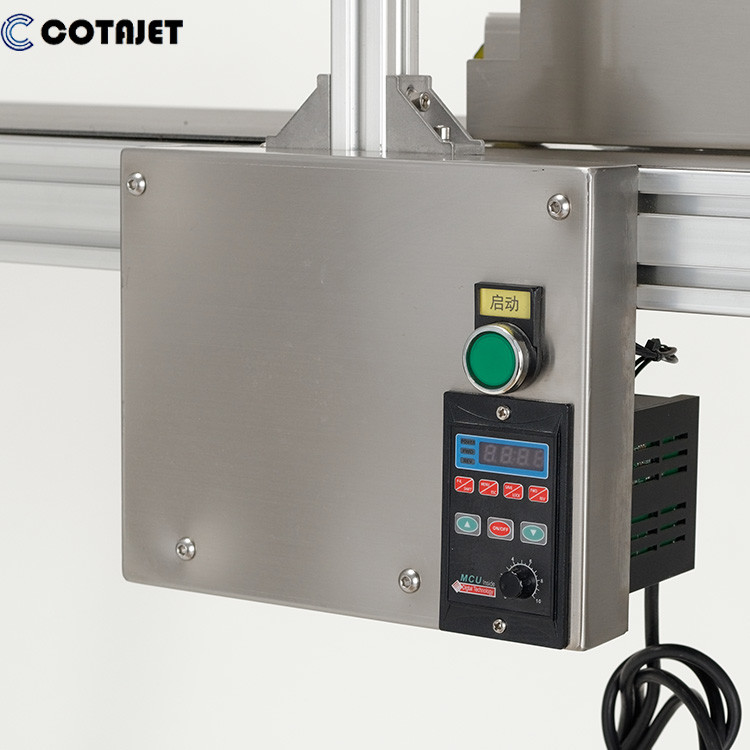

| Control System | Frequency conversion speed regulator |
| Construction | Stainless steel polishing with industrial section steel frame |
| Base | Adjustable floor stand |
